HL5897_web

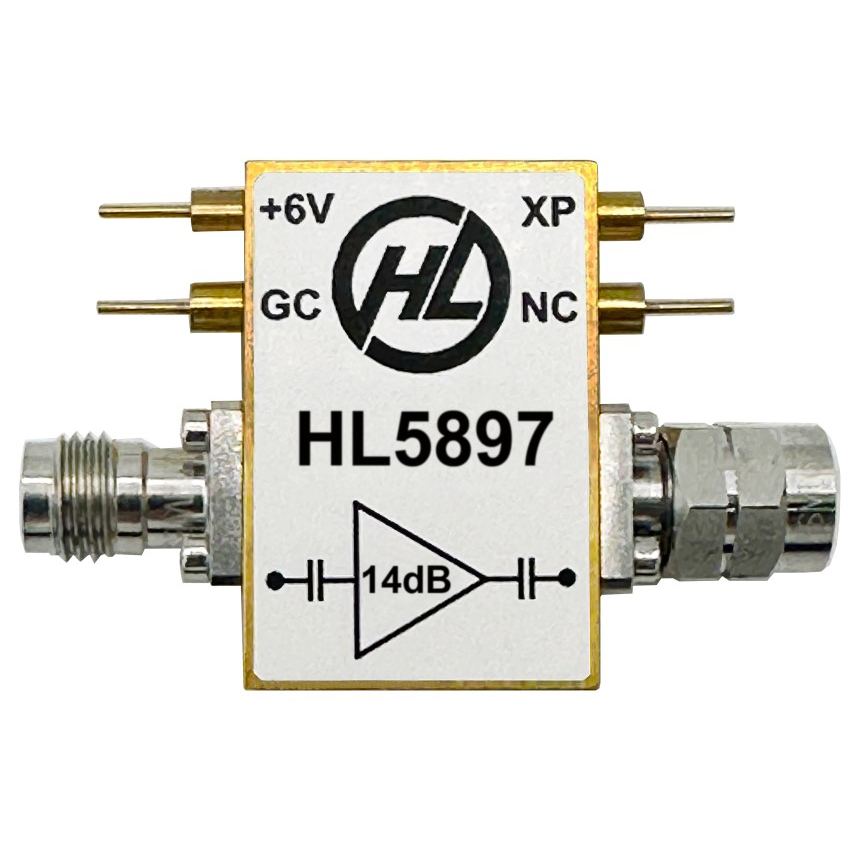

HL5897 Ultra-Broadband Linear Amplifier (opt. -18-JP shown)
HL5897_eye-out

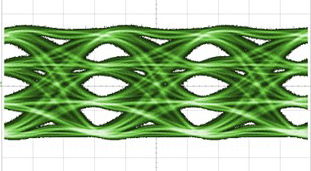

112 Gbps pattern on the RF Out port of HL5897-18-JP
HL5897_IL
Typical Small Signal Gain of HL5897-18-JP
HL5897 Ultra-Broadband Linear Amplifier (70 kHz to 65 GHz)
$4,795.00 – $5,795.00
This product has an estimated availability date of June 1, 2023. Pre-orders are being accepted.
Preliminary Datasheet | S-parameters (coming soon)
The HL5887 is an ultrabroadband, linear amplifier and data driver that demonstrates exceptional gain flatness over a typical bandwidth of 70 kHz to 65GHz.
This amplifier is optimized as a data driver to amplify signals with a minimum amount of eye distortion. This is ideal for use as a linear gain block in applications
such as fiber optic receiver channels or 112 Gbps PAM4 signaling.
Only a single 6 V supply is needed for operation
This product is part of our line of Broadband Amplifiers.
Key Specifications (typical)
| Bandwidth (3 dB) | 70 kHz to 65 GHz |
|---|---|
| Small Signal Gain | 13.5 dB |
| Return Loss | 10 dB, input (est.) 10 dB, output (est.) |
| P(in) Max | 15 dBm; 3.5 Vpp |
| Max Power Out (-1 dB gain comp.) | 17.3 dBm 4.75 Vpp |
| Return Loss | 10 dB, input 9 dB, output |
| Max Power Out | 16 dBm, 1 dB gain comp. |
| Temperature Limits | 0° to +50° C, operating case temp. |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
