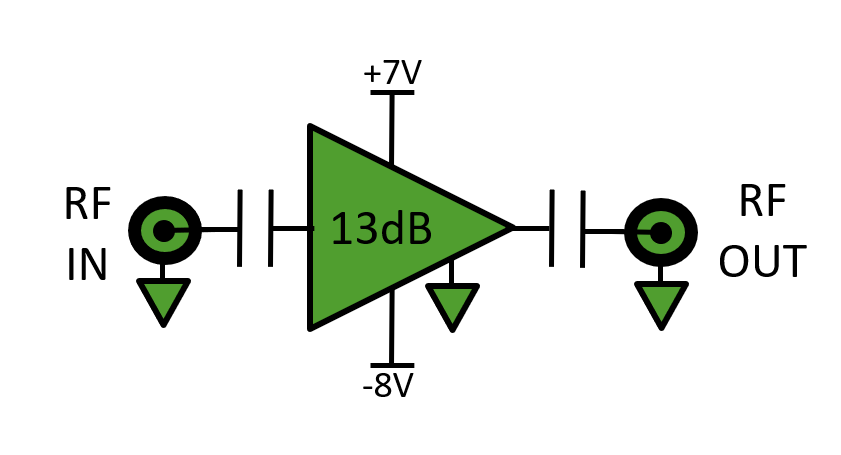

HL5867_block
HL5867 port assignments

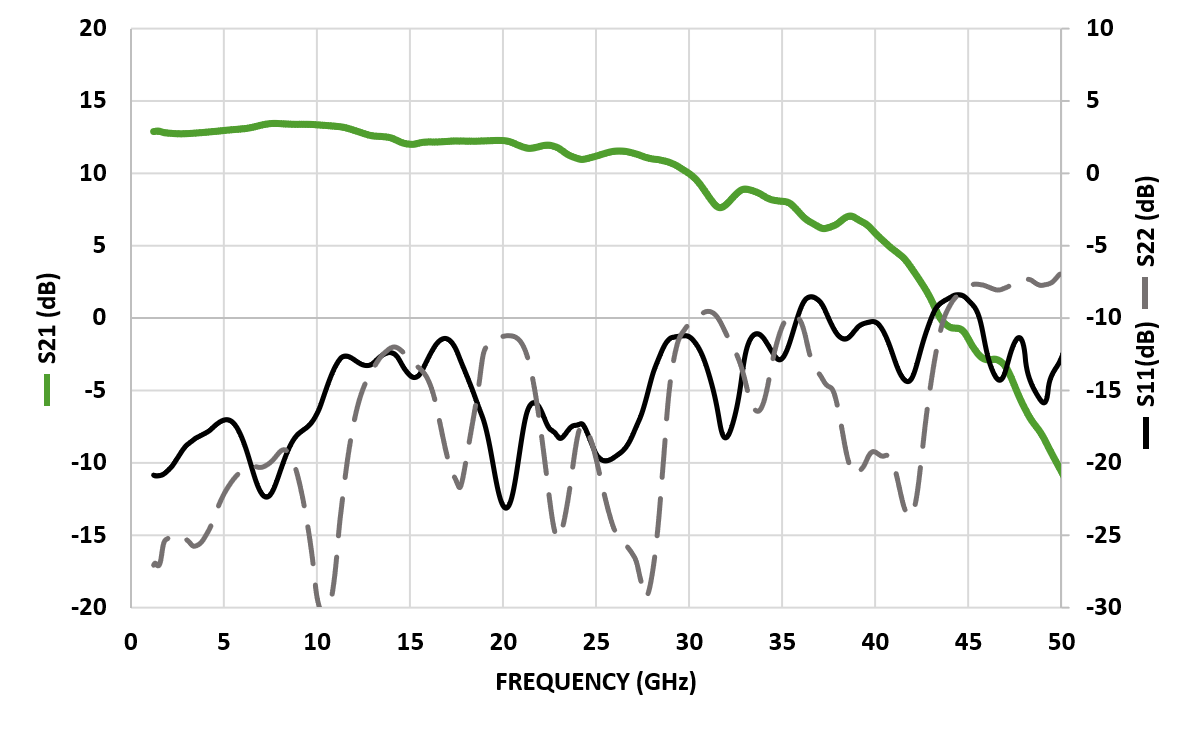

HL5867_Sparams

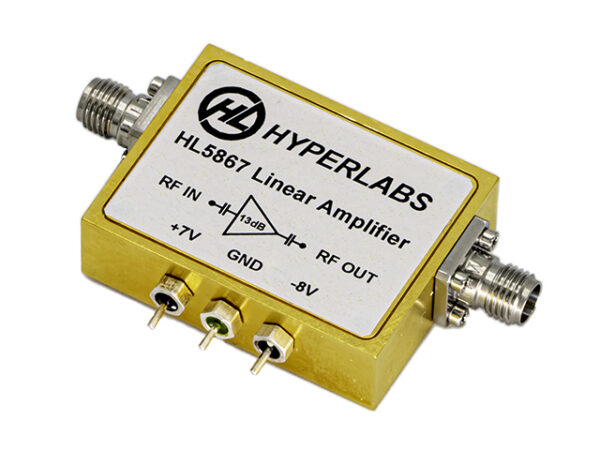

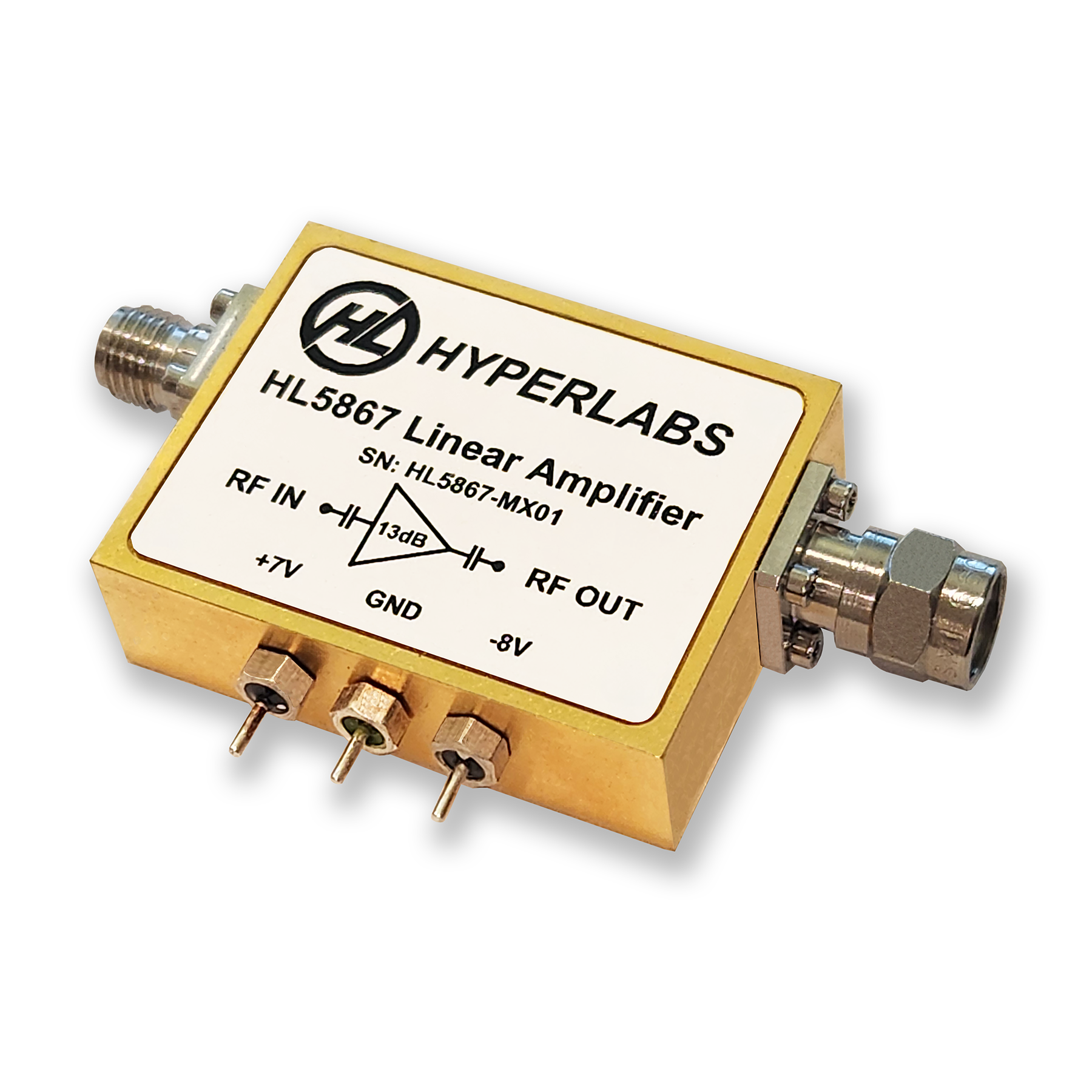

HL5867 Broadband Linear Amplifier (35 kHz to 30 GHz)
$2,795.00
Datasheet | S-parameters
The HL5867 is an ultrabroadband linear amplifier that demonstrates exceptional gain flatness over a typical bandwidth of 35 kHz to 30 GHz. This model is available with two options optimized for RF or data applications. The amplifier is thermally compensated between 0° to +60° C to reduce variations in output performance and amplitude.
Option -GD offers ultra-linear phase response for use in RF systems where amplification is needed without a significant phase distortion.
The -DD option is optimized as a data driver to amplify signals with a minimum amount of eye distortion. This option is ideal for use as a linear gain block in applications such as fiber optic receiver channels or PAM4 signaling up to 32 Gbps.
This product is part of our line of Broadband Amplifiers.
Key Specifications (typical)
| Bandwidth (3 dB) | 35 kHz to 30 GHz (opt. -DD) |
|---|---|
| Small Signal Gain | 13 dB |
| Deviation from Linear Phase | ±2.5 deg. to 20 GHz (opt. -GD) |
| Amplitude Deviation | ± 2.5%, 0° to +60° C |
| XP Deviation | ± 2%, 0° to +60° C |
| Return Loss | 12 dB, input & output |
| Max Power Out | 12.5 dB, -1 dB gain comp. |
| Temperature Limits | 0° to +60° C, operating |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
