Ultra-Broadband Pick-off Tees

HYPERLABS is pleased to offer the highest-performance Broadband DC Pick-off Tees on the market, with the industry’s lowest levels of insertion loss from DC to 67 GHz.

All models are available as either single units or amplitude- and phase-matched pairs, A variety of connector configurations is available.

Applications for these devices include digital oscilloscope pre-scaler triggering, synchronization, and clock/data recovery.

Effective 09/09/2020, bandwidth has been revised for HL9465 and HL9466 (50 GHz) and HL9461 and HL9462 (26.5 GHz).

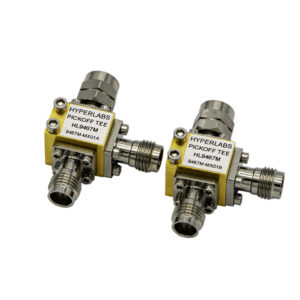

HL9467 Broadband Z-matched Pick-off Tee (67 GHz)

$3,295.00 – $6,595.00
Select options
HL9465 Broadband Z-matched Pick-off Tee (50 GHz)

$2,795.00 – $5,595.00
Select options
HL9464 Broadband Z-matched Pick-off Tee (40 GHz)

$2,295.00 – $4,595.00
Select options
HL9462 Broadband Z-matched Pick-off Tee (26.5 GHz)

$1,795.00 – $3,595.00
Select options
HL9565 Broadband Pick-off Tee (50 GHz)

$1,395.00 – $2,795.00
Select options
HL9564 Broadband Pick-off Tee (40 GHz)

$1,195.00 – $2,395.00
Select options
HL9562 Broadband Pick-off Tee (26.5 GHz)

$995.00 – $1,995.00
Select options

Ultra-Broadband Pick-off Tees

Effective 09/09/2020, bandwidth has been revised for HL9465 and HL9466 (50 GHz) and HL9461 and HL9462 (26.5 GHz).

Z-matched Models (all ports 50 Ω)

Standard Models (14 or 20 dB pick-off)

HL9467 Broadband Z-matched Pick-off Tee (67 GHz)

HL9465 Broadband Z-matched Pick-off Tee (50 GHz)

HL9464 Broadband Z-matched Pick-off Tee (40 GHz)

HL9462 Broadband Z-matched Pick-off Tee (26.5 GHz)

HL9565 Broadband Pick-off Tee (50 GHz)

HL9564 Broadband Pick-off Tee (40 GHz)

HL9562 Broadband Pick-off Tee (26.5 GHz)
