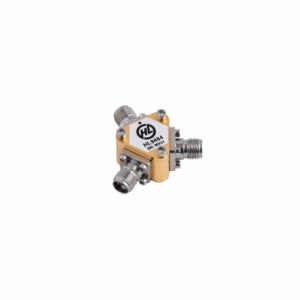

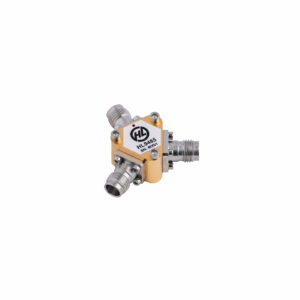

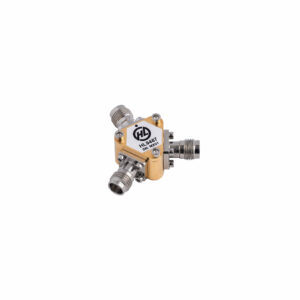

Ultra-Broadband Resistive Power Splitters

HYPERLABS Broadband Resistive Power Splitters are symmetrical, two-resister devices that  provide outstanding amplitude and phase symmetrical power division from DC to beyond 67 GHz. A variety of connector configurations is available.

These parts are suitable for making power ratio measurements as accuracy of the divided outputs  is extremely well tracked. The precision of the divided outputs allows for measurements to be taken with a high level of ratio-metric certainty.

They are applicable for levelling applications in transmission measurements, or reflection measurements with the use of a bridge.

For applications where 50 Ohm matching is required on all ports, see our HL947x Broadband Resistive Power Dividers.
