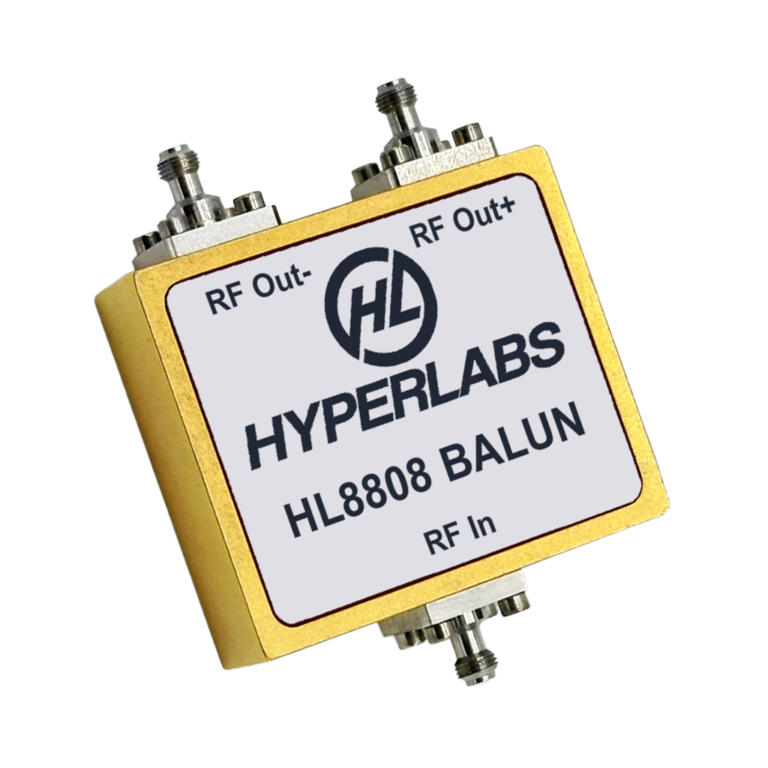

Ultra-Broadband Baluns

NEW: 100 GHz Baluns – HL9409

HYPERLABS  baluns are ultra-broadband 180° signal splitters and combiners that offer excellent amplitude and phase match over an industry-best bandwidth of 500 kHz to 100 GHz (3 dB).

They are suitable for use in optical communications, 112 Gbps PAM4 communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.

These baluns convert an unbalanced 50 ohm signal to a precision-balanced differential signal. They are bi-directional and can also be used as high-precision signal combiners (differential to single-ended) with excellent CMRR and minimal harmonic distortion.

HYPERLABS baluns offer unrivaled bandwidth, amplitude and phase match, and price-for-performance in microwave and RF applications.

Test and Measurement Models
  • HL9409 – 500 kHz to 100 GHz, 1.0 mm
  • HL9408 – 500 kHz to 85 GHz, 1.0 mm
  • HL9407 – 500 kHz to 67 GHz, 1.85 mm
  • HL9405 – 500 kHz to 50 GHz, 2.4 mm
  • HL9404 – 500 kHz to 40 GHz, 2.92 mm
  • HL9402 – 500 kHz to 26.5 GHz, SMA
  • HL9401 – 100 MHz to 20 GHz, SMA
SMD (Surface Mount) Models
  • HL9491 – 1 MHz to 20 GHz, SMD
  • HL9492 – 5 MHz to 30 GHz, SMD
Integrated Baluns w/ Additional Components
  • HL9505 – 500 kHz to 50 GHz,  2.4 mm
  • HL9504 – 500 kHz to 40 GHz,  2.92 mm
  • HL9502 – 500 kHz to 26.5 GHz,  SMA
