Broadband Bias Tees
NEW: Sense Ports and/or SMA jack connectors on the DC port are now available for most models
HYPERLABS offers a variety of ultra-broadband bias tees with low insertion loss throughout the specified bandwidth range.
All of these bias tees block any existing DC signal and allows for the insertion of a DC bias current into a circuit with minimal perturbation of the impedance of a 50 ohm transmission line.
These devices can be used for biasing amplifiers, lasers, optical modulators, and other devices. Applications include 112 Gbps PAM4 communications systems, optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
When ordered in pairs, these components can be matched for use with HYPERLABS and other components, preserving the matching of the rest of the system.
HL9449 Broadband Bias Tee (160 kHz to 110 GHz, 175 mA)$4,495.00 – $8,995.00

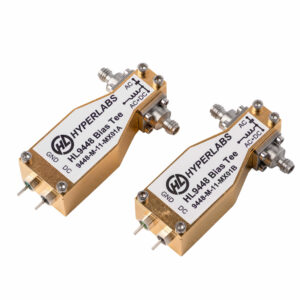

HL9448 Broadband Bias Tee (160 kHz to 95 GHz, 175 mA)$3,795.00 – $7,595.00
HL8447 Broadband Bias Tee w/ Sense Port (50 kHz to 67 GHz, 175 mA)$1,495.00 – $2,995.00

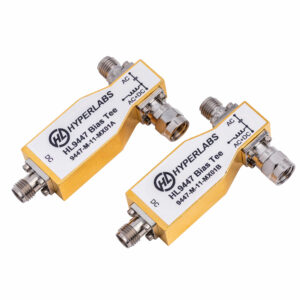

HL9447 Broadband Bias Tee (35 kHz to 67 GHz, 175 mA)$1,295.00 – $2,595.00
