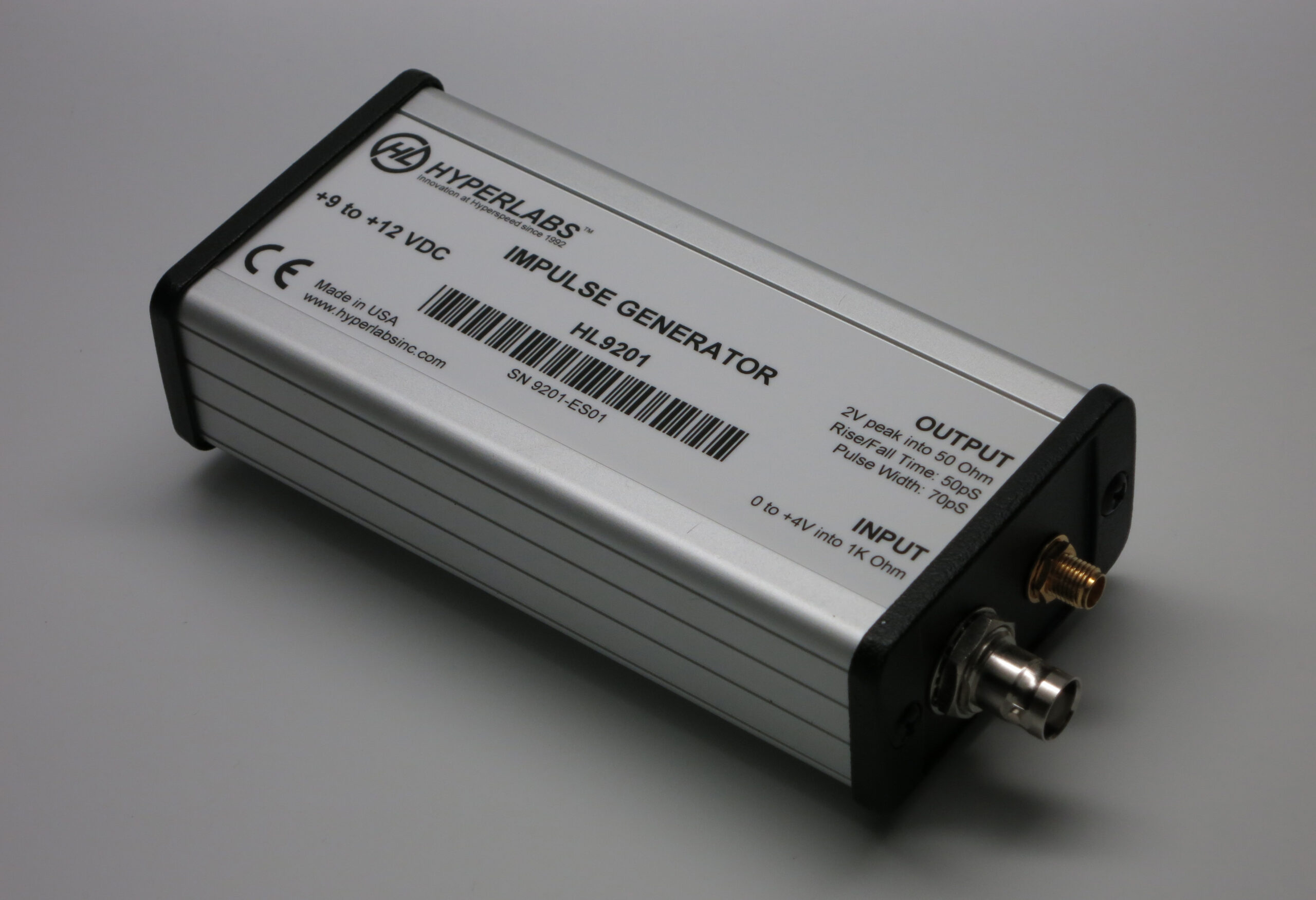

HL9201 Triggerable Impulse Generator (50 ps)


Datasheet PDF

The HL9201 triggerable impulse generator module generates a short positive going output pulse (50 ps rise time)for every positive going transition of the input signal.

Each pulse has a wide spectrum in the frequency domain extending into the Ultra Wide Band (UWB) communication region (2-10 GHz).

SKU: HL9201 Category:

Technical Specifications

Datasheet PDF

Rise/Fall Time 50 ps
Pulse Width 100 ps
Amplitude 2 V min. into 50 Ohm load
Trigger Rate 10 Hz to 10 MHz
UWB Range 1-10 GHz
Warranty 1 year, repair or replacement

Product Applications

  • Generating signal pulses in the Ultra Wide Band (UWB)
  • Exciting antennas and other signal conduits

Data and Documentation

Ordering and Shipping

This product is built to order. Please contact us for lead time information.
