HL9101 Triggerable Impulse Generator (100 ps)

$1,295.00

Datasheet PDF

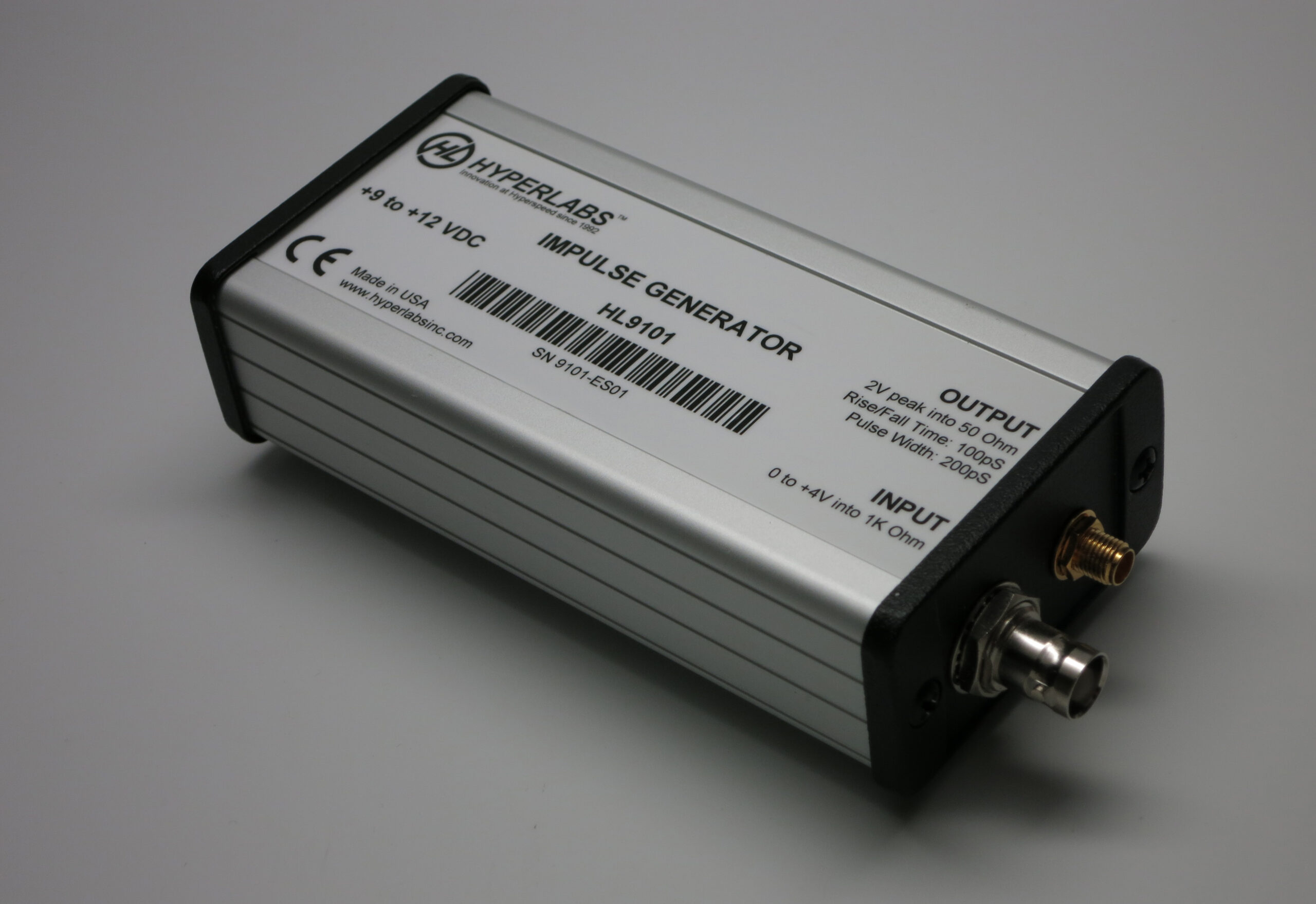

The HL9101 triggerable impulse generator module generates a short positive going output pulse (100 ps rise time)for every positive going transition of the input signal.

Each pulse has a wide spectrum in the frequency domain extending into the Ultra Wide Band (UWB) communication region (2-5 GHz).

SKU: HL9101 Category:

Technical Specifications

Datasheet PDF

Rise/Fall Time 100 ps
Pulse Width 200 ps
Amplitude 2 V min. into 50 Ohm load
Trigger Rate 10 Hz to 10 MHz
UWB Range 2-5 GHz
Warranty 1 year, repair or replacement

Product Applications

  • Generating signal pulses in the Ultra Wide Band (UWB)
  • Exciting antennas and other signal conduits

Data and Documentation

Ordering and Shipping

This product is built to order. Please contact us for lead time information.

Questions About this Product

Not sure this product fits your needs? Do you need something a little different? Please contact us and we’ll help you figure it out.
