HL9462 Broadband Z-matched Pick-off Tee (26.5 GHz)

$1,795.00$3,595.00

Datasheet  | S-parameters

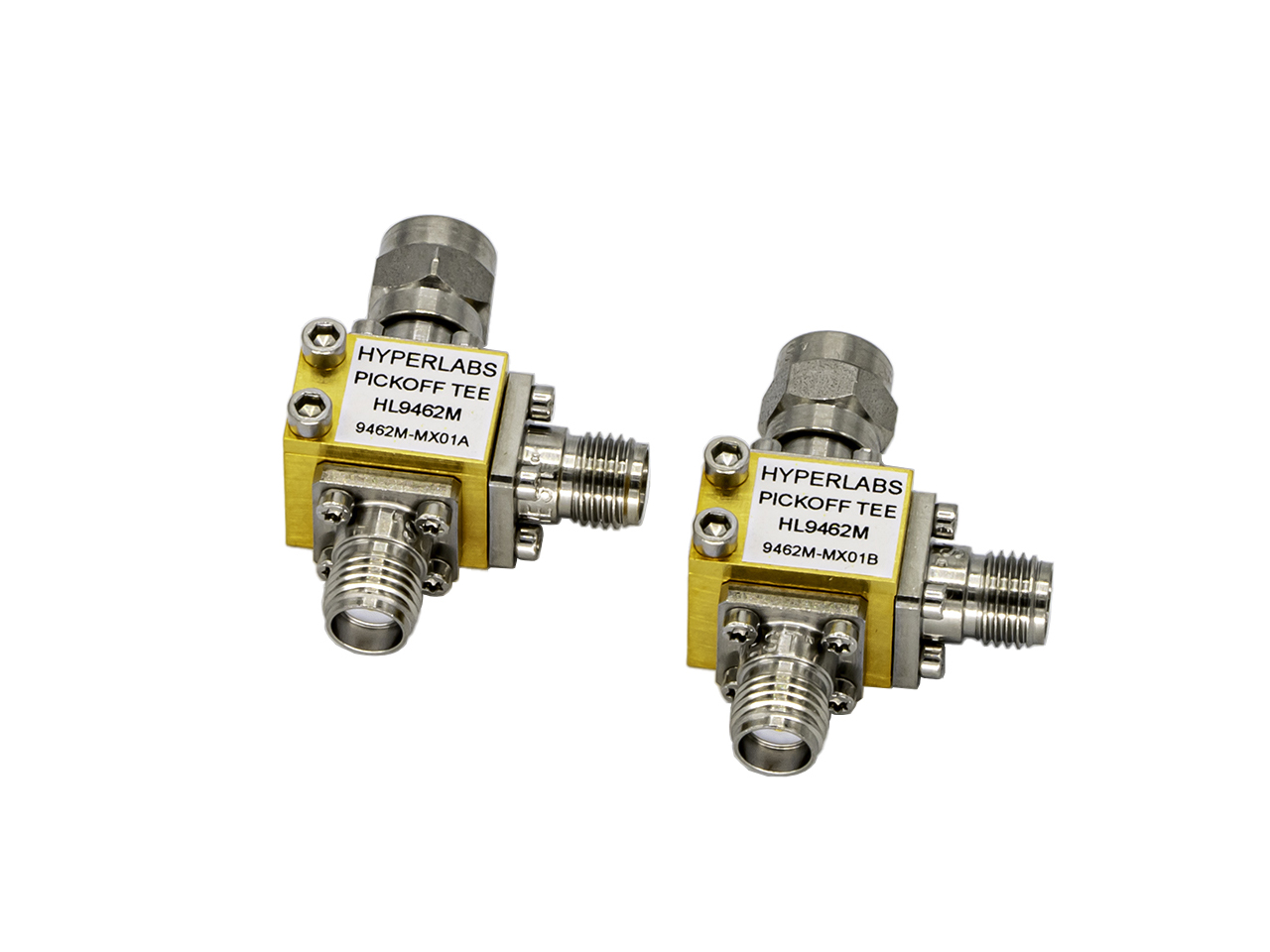

The HL9462 Broadband Z-matched Pick-off Tee, available as either matched pairs (opt. -M) or individual devices (opt. -U), offers flat frequency response from DC to 26.5 GHz on both the thru pick-off lines.

It is suitable as a trigger source with minimum perturbation of the thru signal path. Digital oscilloscope applications include pre-scaler triggering, synchronization, and clock/data recovery.

This product is part of our line of Broadband Pick-off Tees.


Key Specifications (typical)
Bandwidth DC to 26.5 GHz, thru and pick-off lines
Insertion Loss 3.5 ± 0.5 dB, thru line
10.5 ± 1 dB, pick-off line
Amplitude Match (opt. -M) ± 0.1 dB
Phase Match (opt. -M) ± 2°, f = 10 GHz
± 5°, f = 20 GHz
Return Loss < 15 dB, thru line
< 20 dB, pick-off line
Group Delay  ≈ 130 ps, thru line (opt. -JJJ)
≈ 110 ps, thru line (opt. -JPJ)
≈ 140 ps, pick-off line (all opts.)
Connectors SMA jack, all ports (opt. -JJJ)
SMA jack, Thru 1 and Pick-off; SMA plug, Thru 2 (opt. -JPJ)
Unit Dimensions 31.24 x 22.86 x 13.59 mm (1.23″ x 0.90″ x 0.54″)
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

Clear
SKU: N/A Category:

Technical Specifications

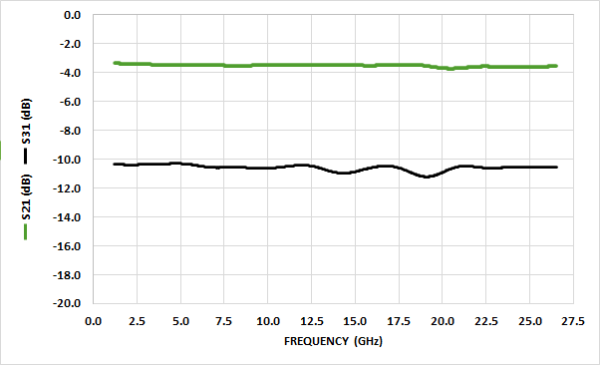

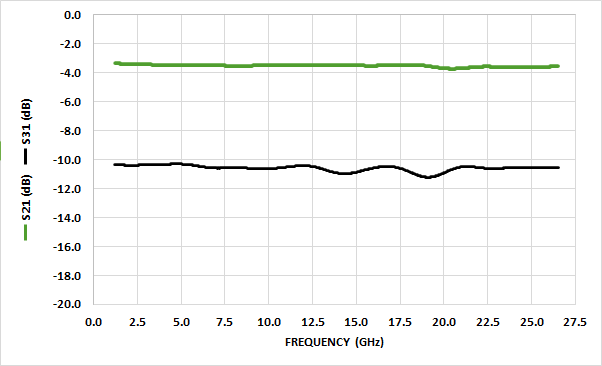

Datasheet PDF    |   S-parameters ZIP

Effective 09/09/2020, bandwidth for this part is revised to 26.5 GHz.
Bandwidth DC to 26.5 GHz, thru and pick-off
Amplitude Match ± 0.10 dB, typical
Risetime 17.5 ps, thru and pick-off
Insertion Loss 3.5 dB thru, 10.5 dB pick-off
Connectors SMA, various configurations
ROHS compliance Yes, assembled with lead-free solder
Warranty 1 year, repair or replacement

Product Applications

  • Digital oscilloscope pre-scaler triggering
  • Synchronization
  • Clock/data recovery
