HL9600 Calibration Standards Substrate


Datasheet PDF

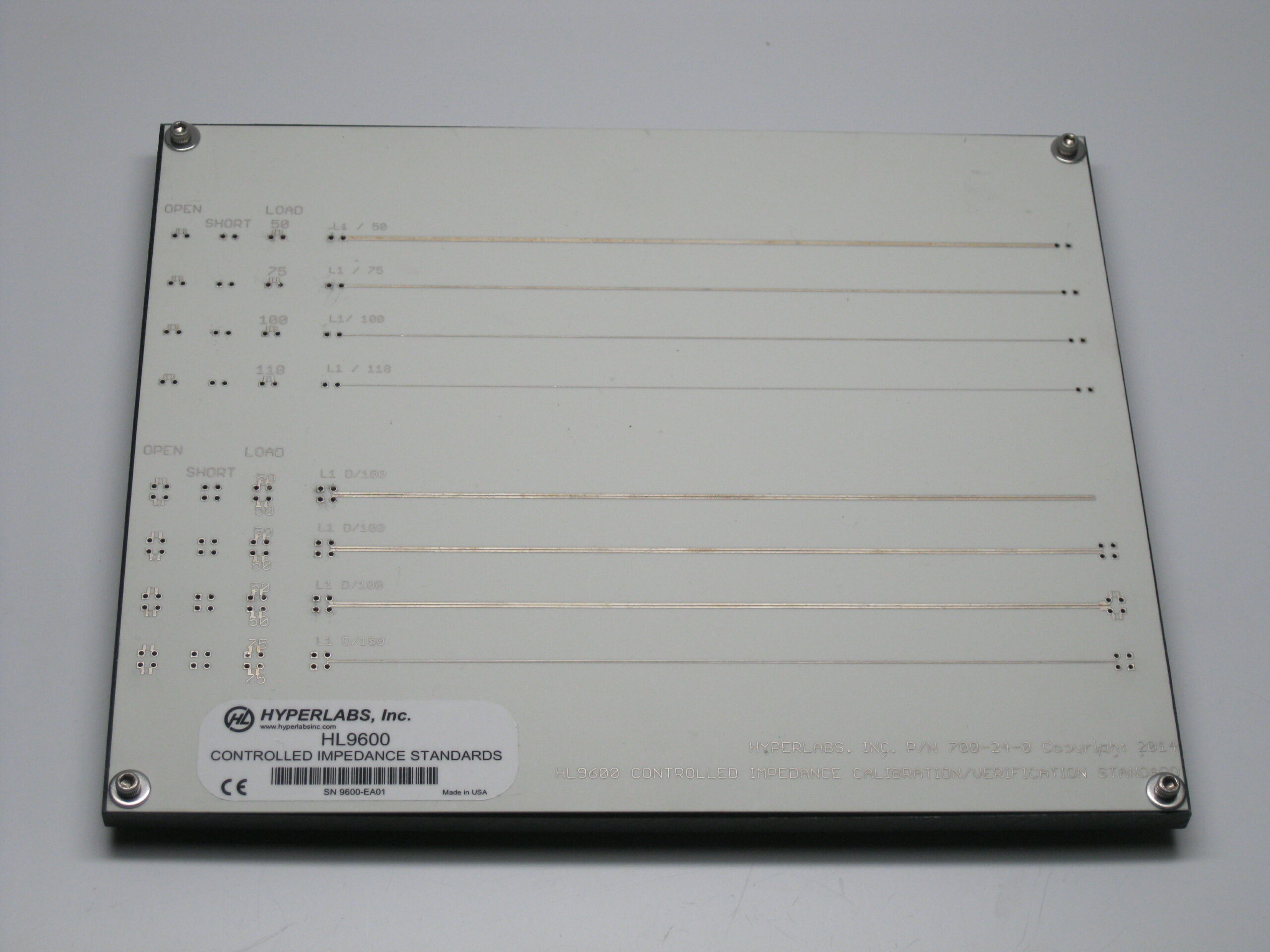

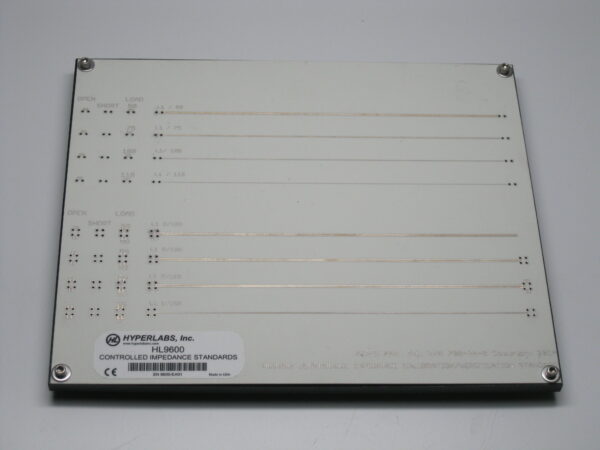

The HL9600 is a network analyzer-style calibration standard substrate with typical ± 0.1% accuracy at 50, 75, 100, and 150 Ohms.

Differential and single-ended traces are included in a SOLT (short, open, load, transmission) configuration.

SKU: HL9600 Category:

Technical Specifications

Datasheet PDF

Calibration Type SOLT (short, open, load, thru)
Trace Accuracy ± 0.1 % at 50, 75, 100, and 150 Ω
Pitch 0.100″
Warranty 1 year, repair or replacement

Product Applications

  • Validation of measurements taken by HYPERLABS instruments
  • External SOLT calibration (supported instruments only)
