HL9721 Single-ended Pencil Probe

$995.00

Datasheet PDF

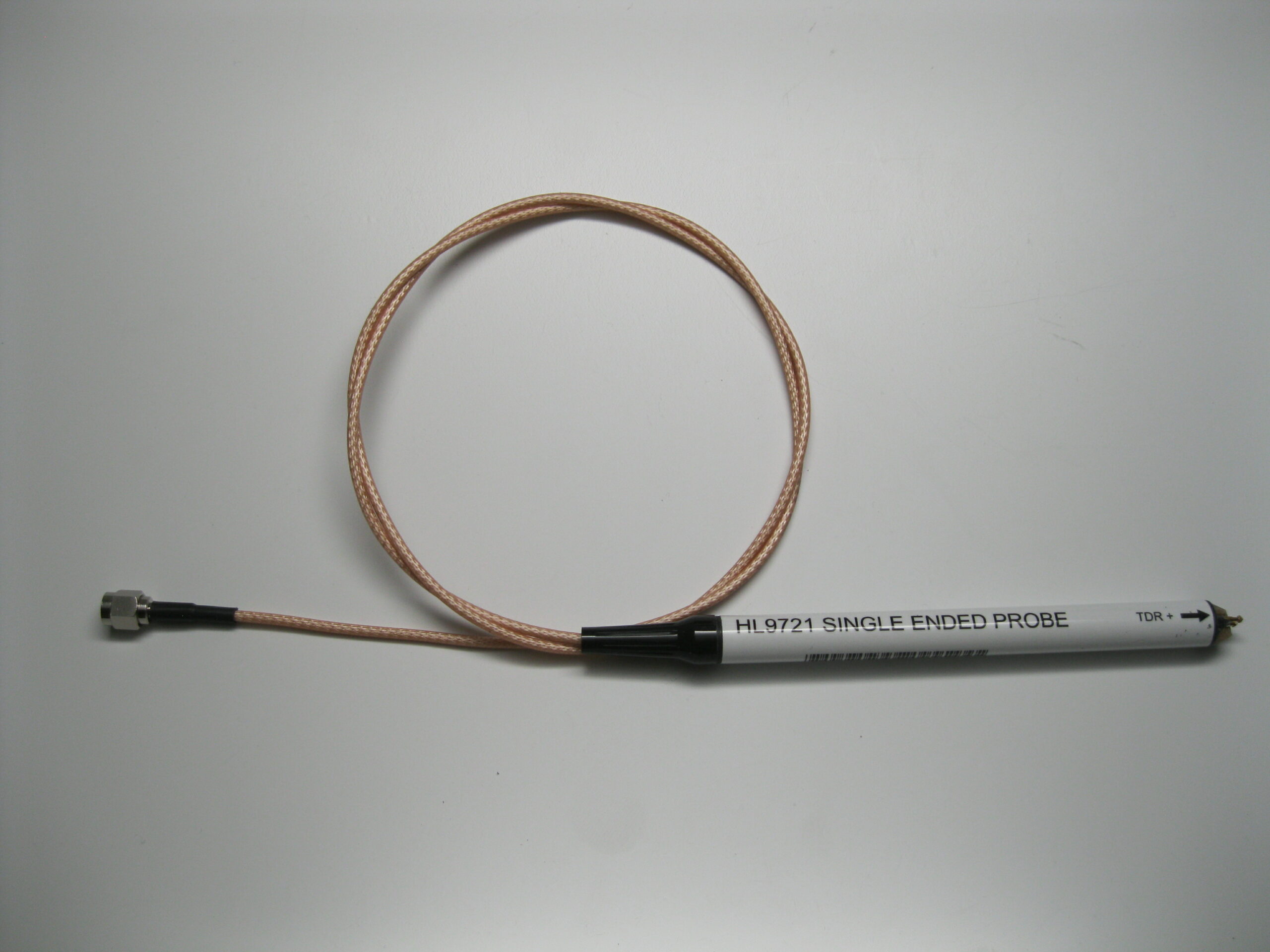

The HL9721 is a handheld pencil-style probe used to simply impedance characterization of IPC-2141A standard (0.100”) PCB test coupons.

This single-ended odd mode probe is designed specifically for use with the HL3204 Controlled Impedance Analyzer.

The HL9721 can be purchased alone or as part of our dedicated HL300S Ruggedized Controlled Impedance Test System.

SKU: HL9721 Category:

Technical Specifications

Datasheet PDF

Measurement Type Single-ended odd mode
Rise Time 50 ps (20-80%), typical
Footprint 0.100″, ground/signal
Warranty 1 year, repair or replacement

Product Applications

  • Printed circuit board (PCB) coupon testing
  • Characterizing impedance in traces as short as 4″

Data and Documentation

Ordering and Shipping

This product is built to order. Please contact us for lead time information.
