HL1101 Ruggedized USB TDR


Datasheet PDF

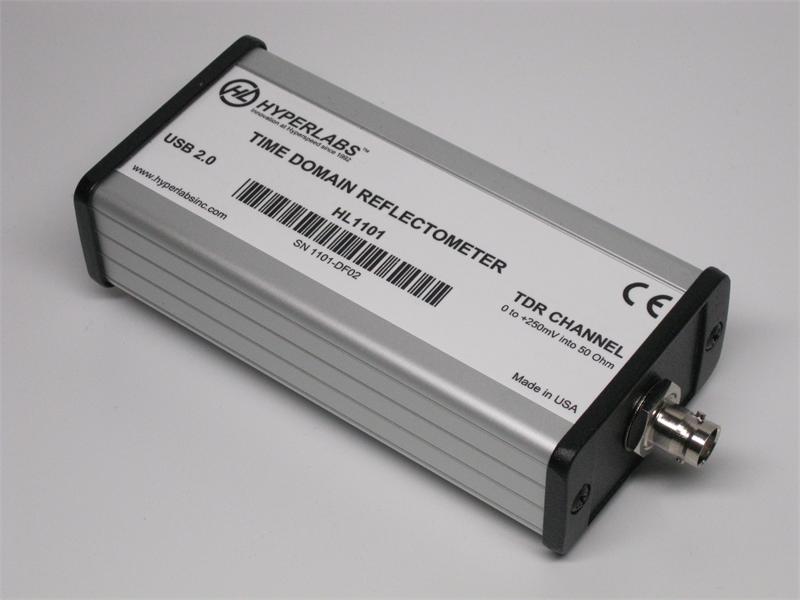

The HL1101 is an electrostatic-robust, USB-driven TDR suitable for deployment in a wide variety of lab, field, and industrial applications.

The included ZTDR™ software displays full waveforms and impedance measurements on any Windows PC.

SKU: HL1101 Category:

Technical Specifications

Datasheet PDF

# of Channels 1 single-ended
Typical Rise Time 200 ps
ESD Sensitivity Complies with Class 2 of ESDS Component Sen-sitivity Classification (ESD STM5.1-1998)
Test Range 200 m (400 m roundtrip)
Interface USB-powered and -controlled
Software ZTDR (Windows only) with lifetime upgrades
Dimensions 5.66″ x 2.44″ x 1.48″
Weight 7.7 oz.
Warranty 1 year, repair or replacement

Product Applications

  • Impedance characterization in cables
  • Fault detection and location in communications cables
  • Time of flight and delay measurement
  • Soil moisture measurement
  • Water level and turbidity measurement

Software and Documentation

Ordering and Shipping

This product typically ships from stock. Please contact us for lead time information.

Questions About this Product

Not sure this product fits your needs? Do you need something a little different? Please contact us and we’ll help you figure it out.
