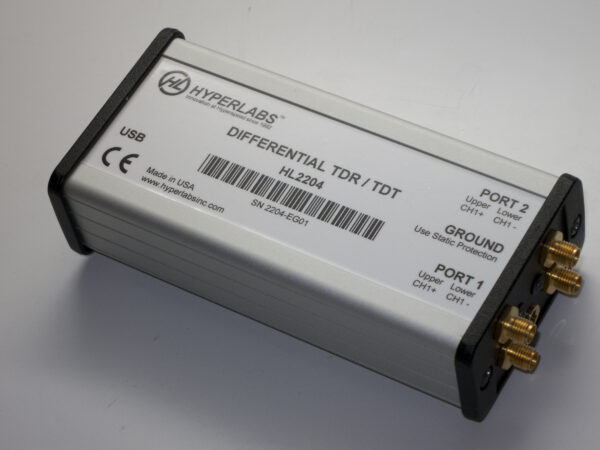

HL2204 High-speed Signal Path Analyzer™

$9,995.00

Datasheet PDF

The HL2204 Signal Path Analyzer™ measures TDR, TDT, return loss, and insertion loss in high-speed interconnects, cables, and PCB traces.

With a fast 35 ps rise time and robust software controls, these instruments provide a cost-effective alternative to traditional benchtop test systems.

The included XTDR™ software for Windows displays full waveforms and numerical measurements in a highly-customizable user interface. The instrument is powered and controlled using a single USB cable.

Technical Specifications

Datasheet PDF

# of Channels 2 differential pairs / 4 single-ended
Typical Rise Time 35 ps
Time Base 75 ns (15 m test range)
Return Loss and Insertion Loss to 5 GHz
Interface USB-powered and -controlled
Software XTDR (Windows only) with lifetime upgrades
Dimensions 5.41″ x 2.44″ x 1.48″
Weight 8.4 oz.
Warranty 1 year, repair or replacement

Product Applications

  • Printed circuit board (PCB) coupon testing
  • Interconnect characterization
  • Impedance measurement of cables up to 7.5 m
