HL9485 Broadband Resistive Power Splitter (DC to 50 GHz)
Datasheet | S-parameters

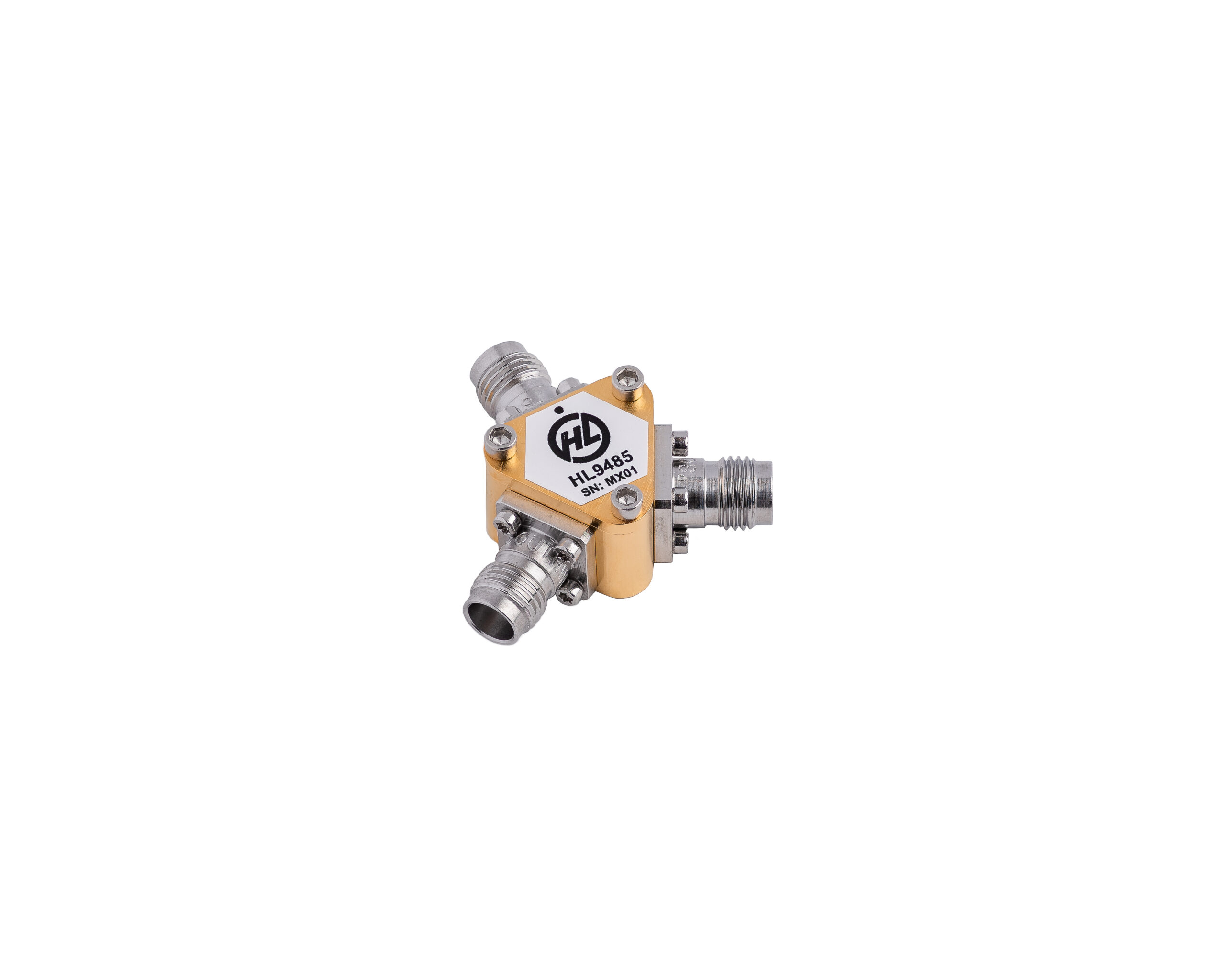

The HL9485 is a symmetrical, two-resistor power splitter that provides outstanding amplitude and phase symmetrical power division from DC to 50 GHz.
This ROHS-compliant product is suitable for making power ratio measurements as accuracy of the divided outputs is extremely well tracked. The precision of the divided outputs allows for measurements to be taken with a high level of ratio-metric certainty.
For other high-performance power splitter products, please see our complete line of ultra-broadband power dividers.
Key Specifications (typical)
|Bandwidth (1.5 dB)||DC to 50 GHz|
|Amplitude Match||± 0.1 dB|
|Phase Match||± 4 degrees, f = 20 GHz
± 8 degrees, f = 40 GHz
|Insertion Loss (AC)||6 dB|
|Connectors||2.4 mm; 3x jack|
|Warranty||1 year, repair or replacement|
NOTE #1: Port 1 is marked with a dot on the label. Ports 2 and 3 are amplitude- and phase-matched.
