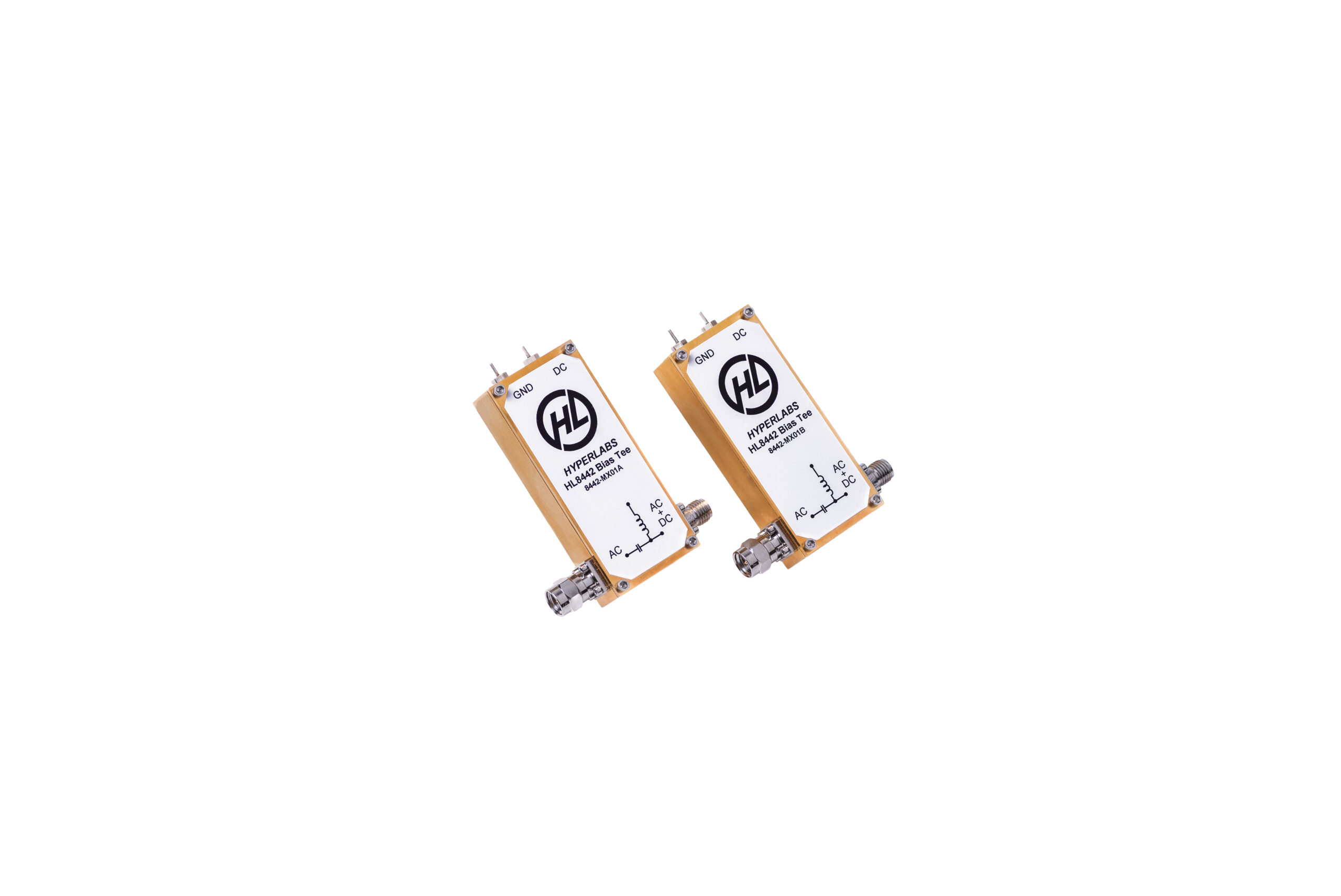

HL8442_web
HL8442 Broadband Bias Tees (opt. -M-PJ shown)

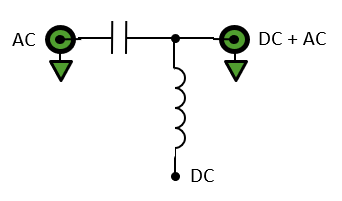

HL8442_block
HL8442 block diagram

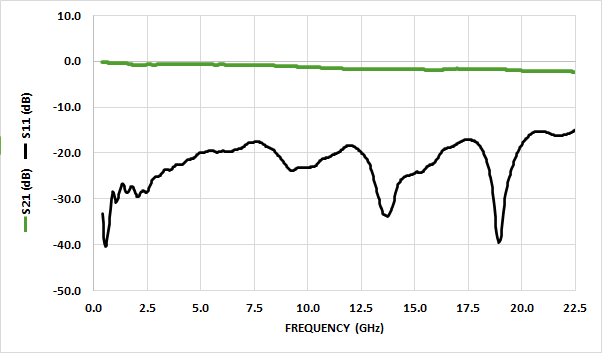

HL8442_IL_RL
Typical HL8442 insertion and return loss
HL8442 Broadband Bias Tee (7.5 kHz to 23 GHz, 2000 mA)
$995.00 – $1,995.00
Datasheet PDF | S-parameters
The HL8442 is an ultra-broadband bias tee with a typical insertion loss of 0.75 dB from 7.5 kHz to 23 GHz and a max current of 2000 mA.
These devices block any existing DC signal and allows for the insertion of a DC bias current into a circuit with minimal perturbation of the impedance of a 50 ohm transmission line.
These devices can be used for biasing amplifiers, lasers, optical modulators, and other devices.
Applications include optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points.
This part is available as matched pairs or individual units with a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 7.5 kHz to 23 GHz |
|---|---|
| Amplitude Match | ± 0.2 dB (opt. -M), f ≤ 23 GHz |
| Phase Match | ± 4 degrees, f = 20 GHz (opt. -M) |
| Insertion Loss | < 0.75 dB, nominal, f ≤ 23 GHz |
| Return Loss | > 10 dB, f ≤ 25 GHz |
| Max Current | 2000 mA |
| Connectors | SMA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
