HL9419_web
HL941x_block
HL941x Block Diagram
HL9419_Sparam
HL941x Series Insertion Loss and Return Loss (model HL9419 shown)

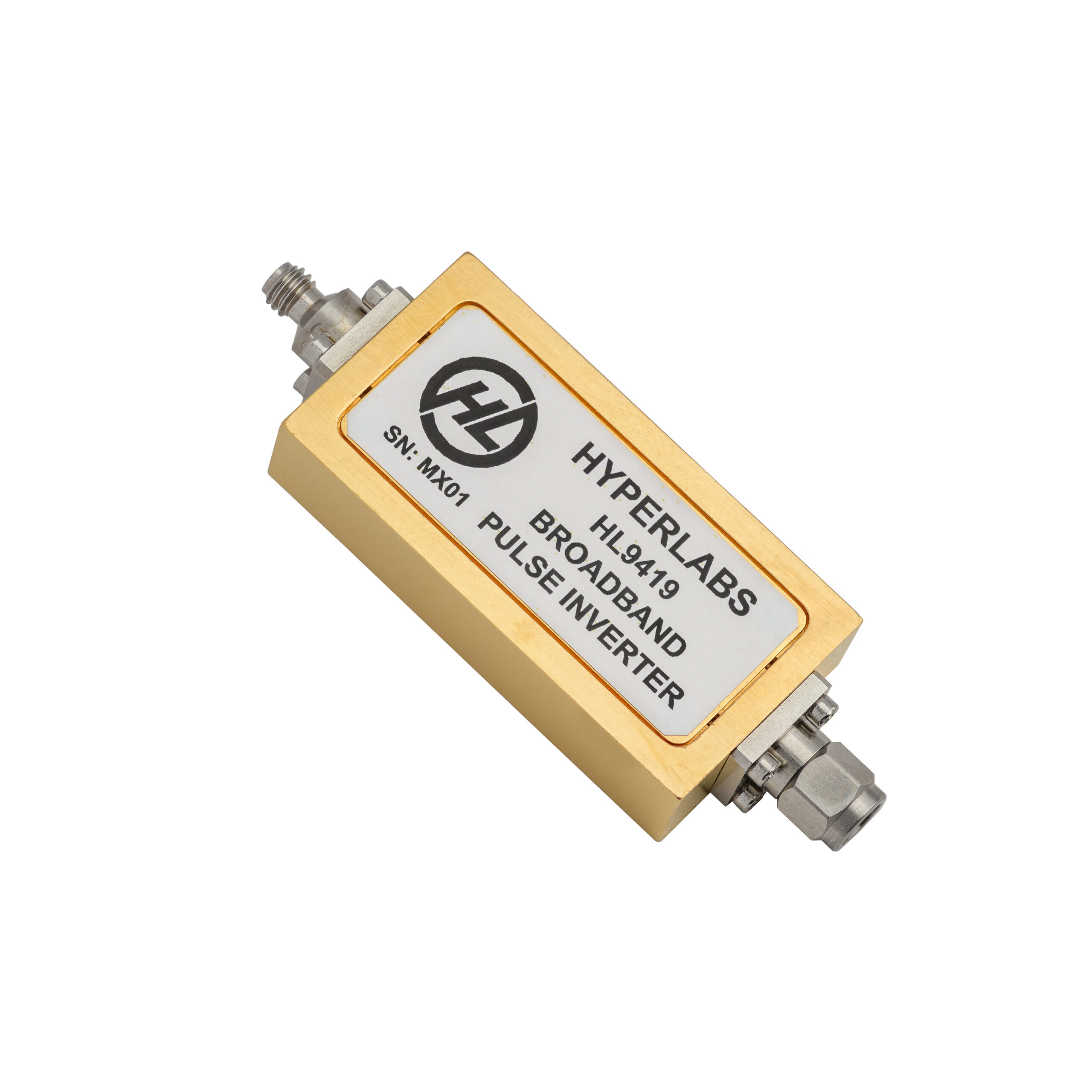

HL9419 Broadband Inverter (150 kHz to 100 GHz)
$2,295.00
Datasheet | S-parameters
The HL9419 is an ultra-broadband Pulse Inverter with a typical fixed insertion loss of 2 dB with a very flat frequency response from 150 kHz to 100 GHz.
These devices are used to invert a signal in the time domain, corresponding to a 180° shift in the frequency domain. The inverters are bi-directional with regards to the applied signal.
The cross-connection of the coaxial cable conductor and outer ground along with ferrites and microwave absorber are used to accomplish the inversion.
This product is available either as a single device or as a matched pair (2 devices). Typical Applications include Test & Measurement, high-speed data systems, pulse experiments, and RADAR.
Key Specifications (typical)
| Bandwidth | 150 kHz to 100 GHz |
|---|---|
| Insertion Loss (AC) | 2 dB, 150 kHz < f ≤ 100 GHz |
| Return Loss (AC) | 10 dB, 150 kHz < f ≤ 100 GHz |
| Connectors | 1.0 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
