HL9333

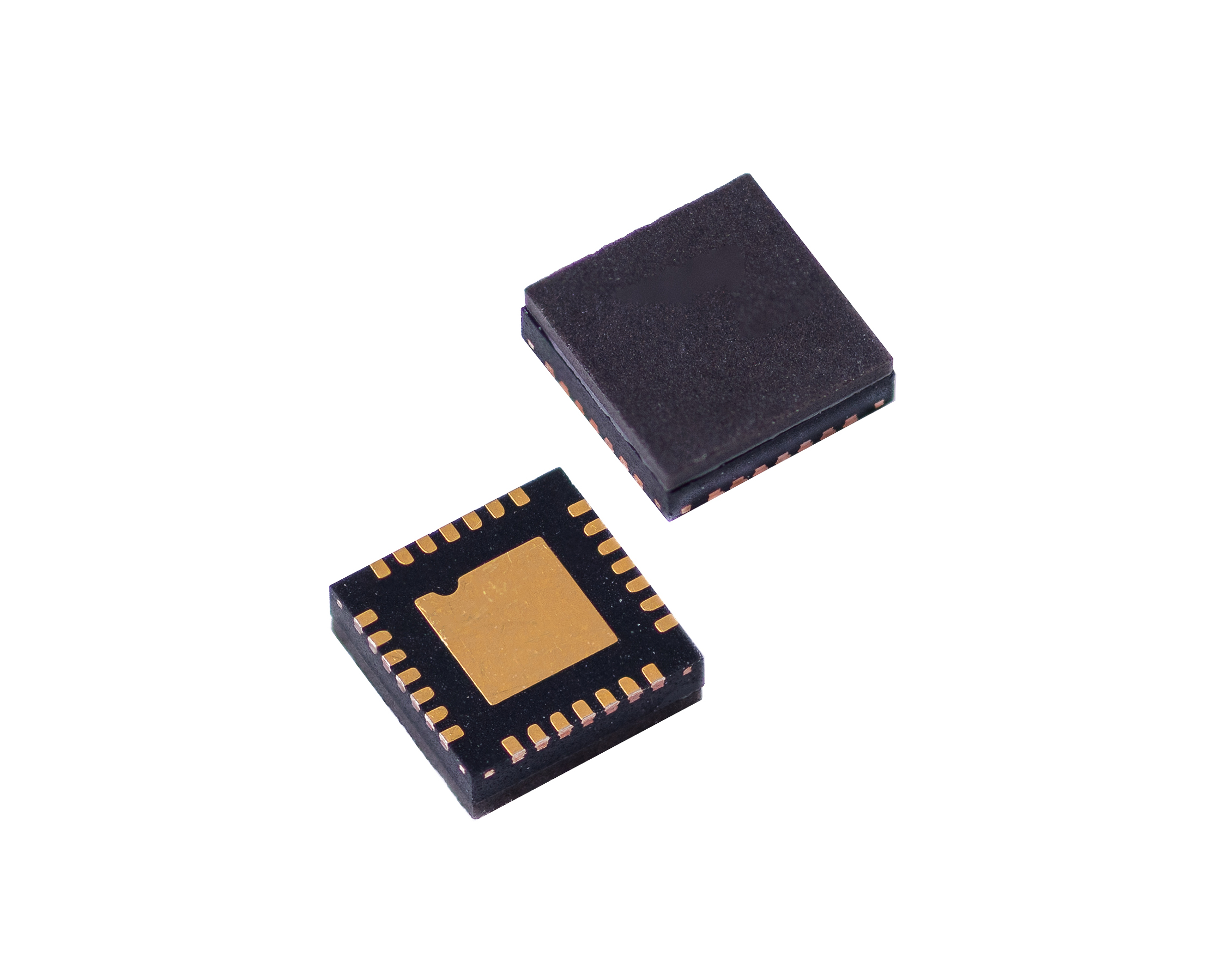

HL9333 in 4x4 mm QFN package
HL9333 Down Converter Sampler / Harmonic Mixer
$2,995.00 – $4,995.00
Datasheet PDF
The HL9333 is a high-precision down-converting sampler / harmonic mixer integrated circuit that offers excellent linearity, low noise and flat frequency response up to 20 GHz (RF).
Applications include harmonic down-conversion, high-speed front-end for A/D converts, and use in network analyzers, TDR, sampling oscilloscopes, and spectrum analyzers
Reference design evaluation boards are available.
| RF Bandwidth (typical) | 17 GHz at -3 dB 19 GHz at -6 dB |
|---|---|
| LO Input Frequency (Square Wave) | 100 MHz to 2.5 GHz |
| LO Input Amplitude (Square Wave) | 300 mVpp (600 mVpp Diff) minimum |
| Conversion Loss | 20 dB |
| LO to RF Isolation | 67 dB |
| Linearity, Second Harmonic* | -68 dBc |
| Linearity, Third Harmonic* | -66 dBc |
| Noise Floor | -130 dBm |
| Warranty | 1 year, repair or replacement |
NOTE #1: Harmonic distortion measurements were taken under the following test conditions: L0 = 1 GHz square wave, RF = 100 MHz @ 0 dBm.
