HL9437 DC Block (67 GHz)


Datasheet PDF

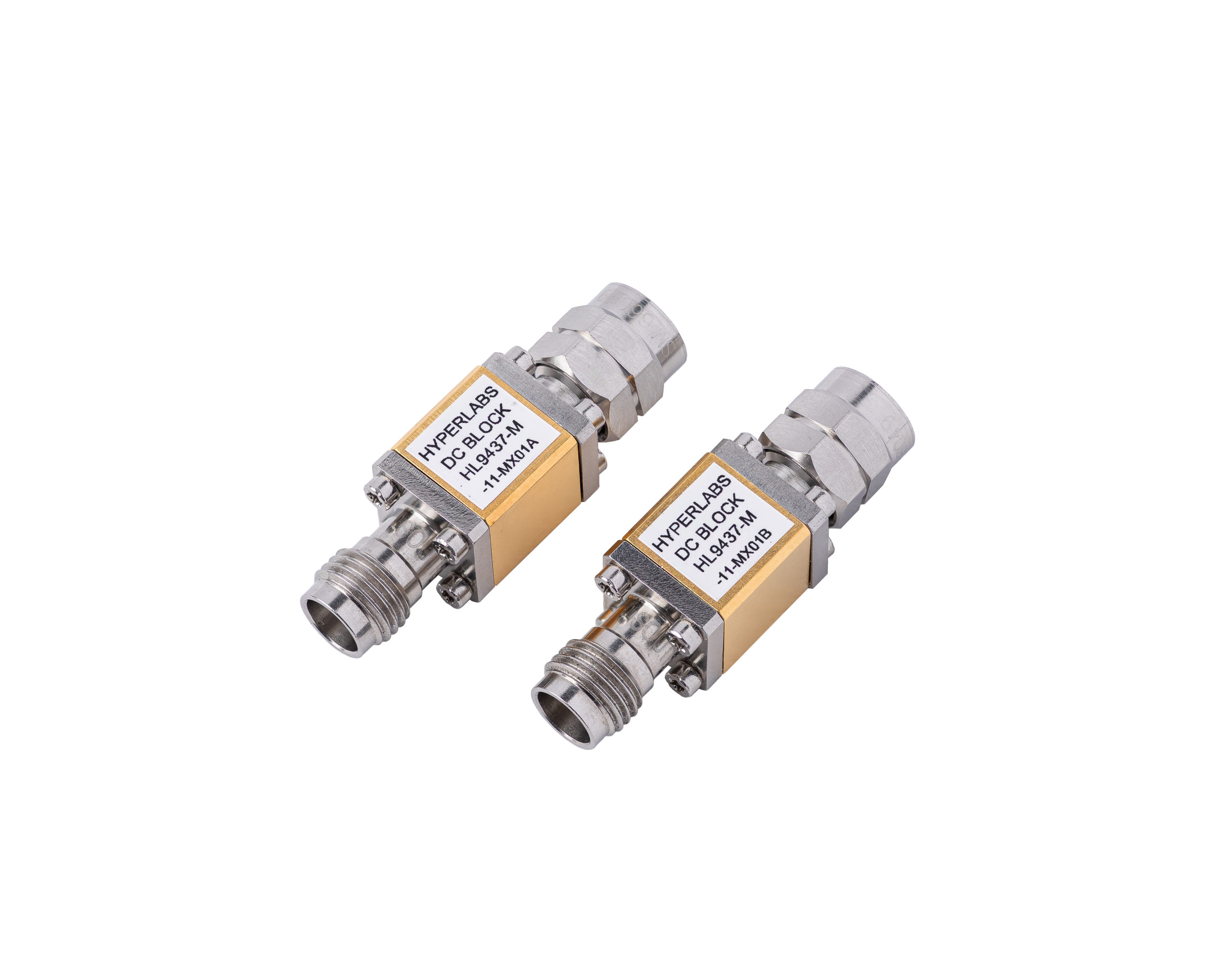

The HL9437 is an ultra-broadband DC Block with typical insertion loss of < 1 dB to 67 GHz. This device will remove DC bias from the input signaling to prevent damage to DC sensitive devices or equipment.

Other applications include optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points. These devices can also be used to improve RF power measurements when a power meter with DC sensitivities is used.

This part is available as matched pairs or individual units with breakdown voltage of 11 V or 30 V and a variety of connector configurations.

Available Options

Plug-Plug Plug-Jack Jack-Plug Jack-Jack
11 V breakdown, matched pair HL9437-M-11-PP HL9437-M-11-PJ HL9437-M-11-JP HL9437-M-11-JJ
30 V breakdown, matched pair HL9437-M-30-PP HL9437-M-30-PJ HL9437-M-30-JP HL9437-M-30-JJ
11 V breakdown, single HL9437-U-11-PP HL9437-U-11-PJ HL9437-U-11-JP HL9437-U-11-JJ
30 V breakdown, single HL9437-U-30-PP HL9437-U-30-PJ HL9437-U-30-JP HL9437-U-30-JJ

NOTE: all plots shown at left are for options -M-30-JJ or -U-30-JJ. For other measured data, please see the S-parameter file below or contact HYPERLABS.

SKU: N/A Category:

Technical Specifications

Datasheet PDF    |   S-parameters (all options) ZIP

Bandwidth 35 kHz to > 67 GHz (opt. -11)
70 kHz to > 67 GHz (opt. -30)
Insertion Loss < 1 dB to 67 GHz, all options
Return Loss 15 dB to 30 GHz, all options
10 dB to 67 GHz, all options
Amplitude Match ± 0.1 dB if purchased in matched pair
Connectors 1.85 mm, various configurations
ROHS compliance Yes, assembled with lead-free solder
Warranty 1 year, repair or replacement

Product Applications

  • Optical communication and high-speed data systems
  • Level shifting and cascading
  • Interfacing between devices with incompatible DC operating points
  • Improving RF power measurements when using DC-sensitive power meter
