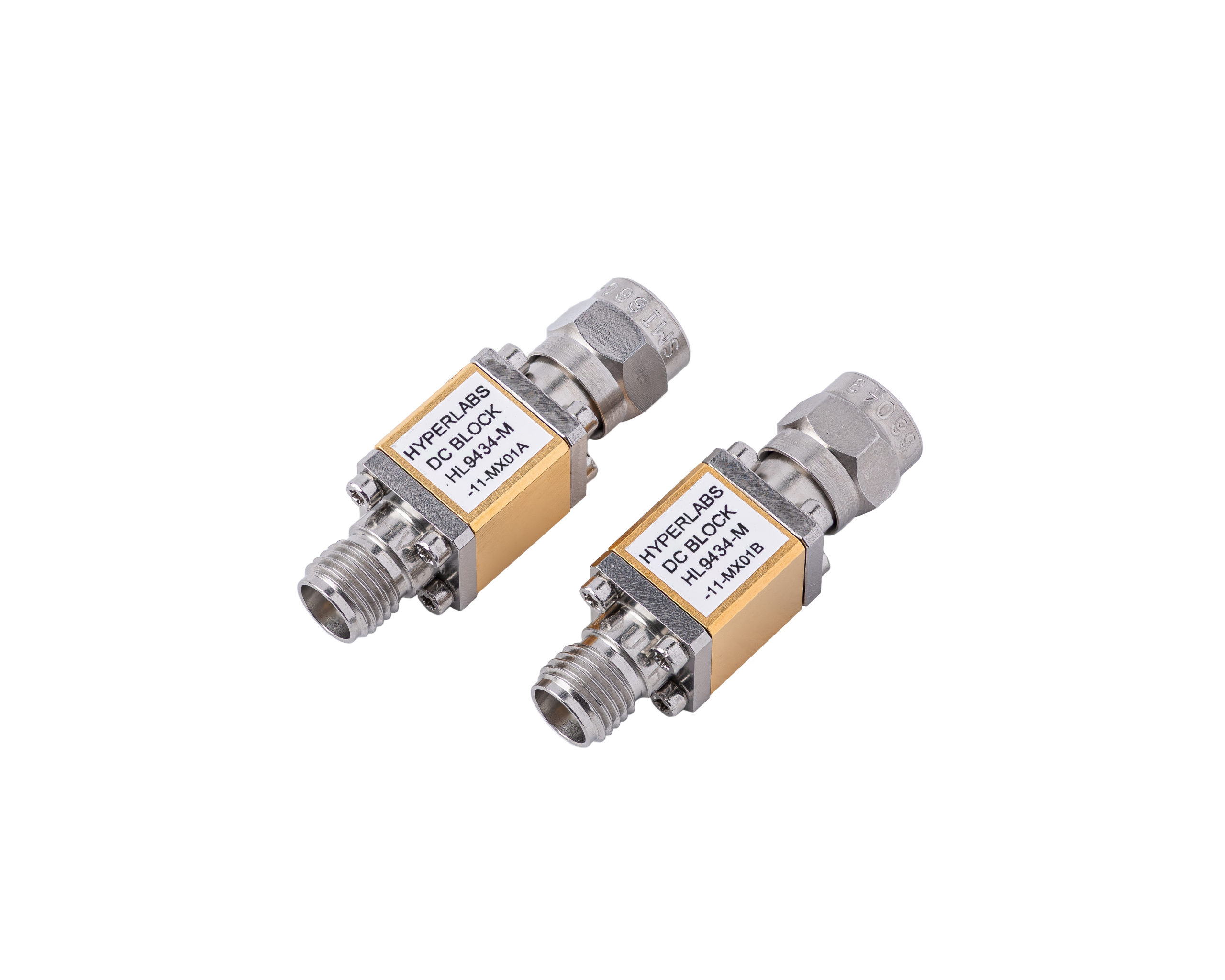

HL9434 DC Block (40 GHz)

$495.00$995.00

Datasheet PDF

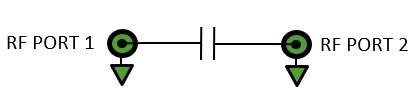

The HL9434 is an ultra-broadband DC Block with typical insertion loss of < 1 dB to 40 GHz. This device will remove DC bias from the input signaling to prevent damage to DC sensitive devices or equipment.

Other applications include optical communication systems, high-speed data systems, level shifting, cascading, and interfacing between devices with incompatible DC operating points. These devices can also be used to improve RF power measurements when a power meter with DC sensitivities is used.

This part is available as matched pairs or individual units with breakdown voltage of 11 V or 30 V and a variety of connector configurations.


Available Options

Plug-Plug Plug-Jack Jack-Jack
11 V breakdown, matched pair HL9434-M-11-PP HL9434-M-11-PJ HL9434-M-11-JJ
30 V breakdown, matched pair HL9434-M-30-PP HL9434-M-30-PJ HL9434-M-30-JJ
11 V breakdown, single HL9434-U-11-PP HL9434-U-11-PJ HL9434-U-11-JJ
30 V breakdown, single HL9434-U-30-PP HL9434-U-30-PJ HL9434-U-30-JJ

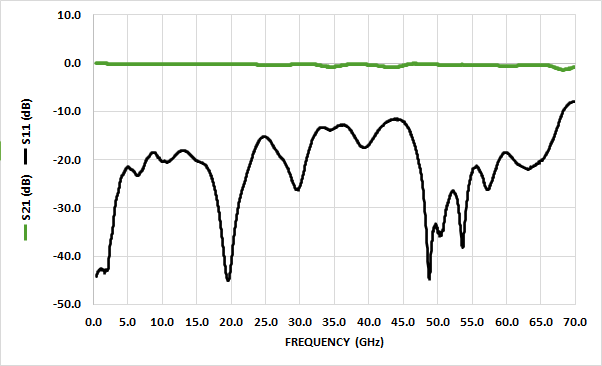

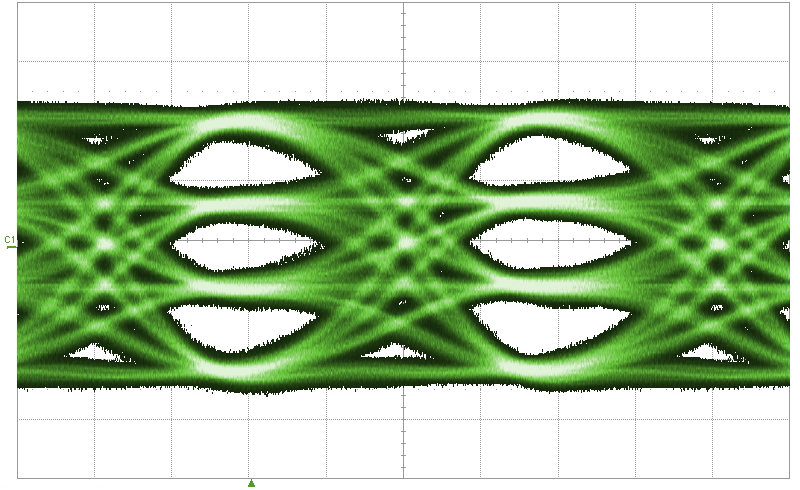

NOTE: all plots shown at left are for options -M-30-JJ or -U-30-JJ. For other measured data, please see the S-parameter file below or contact HYPERLABS.


Clear
SKU: N/A Category:

Technical Specifications

Datasheet PDF    |   S-parameters (all options) ZIP

Bandwidth 35 kHz to > 40 GHz (opt. -11)
70 kHz to > 40 GHz (opt. -30)
Insertion Loss < 1 dB to 40 GHz, all options
Return Loss 15 dB to 30 GHz, all options
10 dB to 40 GHz, all options
Amplitude Match ± 0.1 dB if purchased in matched pair
Connectors 2.92 mm, various configurations
ROHS compliance Yes, assembled with lead-free solder
Warranty 1 year, repair or replacement

Product Applications

  • Optical communication and high-speed data systems
  • Level shifting and cascading
  • Interfacing between devices with incompatible DC operating points
  • Improvin RF power measurements when using DC-sensitive power meter

Data and Documentation

HYPERLABS offers a full line of DC Blocks with additional connector types and configurations.

Ordering and Shipping

This product typically ships within 5 business days. Please contact us for lead time information.

Questions About this Product

Not sure this product fits your needs? Do you need something a little different? Please contact us and we’ll help you figure it out.
