HL934x Broadband DC Feeder

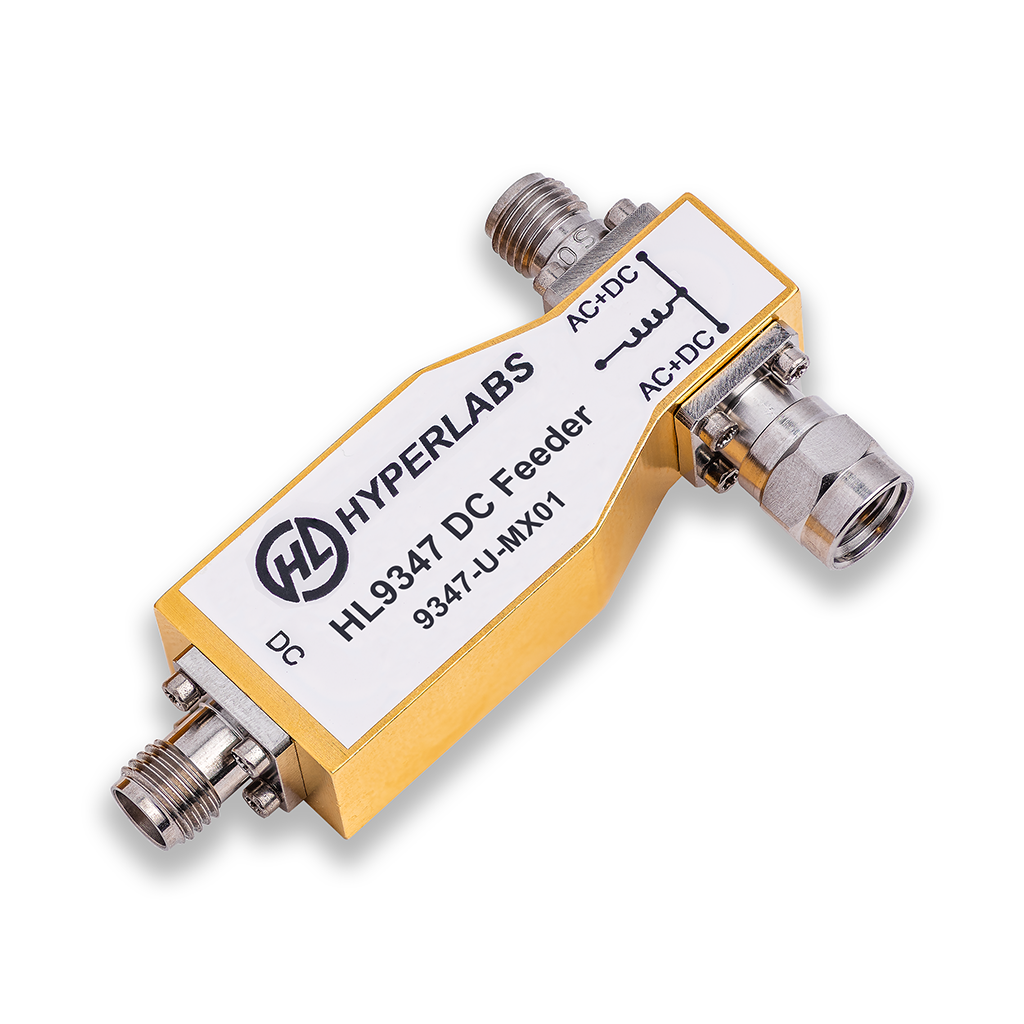

HL9347 Broadband DC Feeder (13 kHz to 67 GHz)
Datasheet PDF |Â S-parameters
The HL9347 is an ultra-broadband DC feeder with a typical insertion loss of 2.5 dB from 13 kHz to 67 GHz.
A DC feeder functions similarly to a bias tee, but without a DC blocking capacitor on the RF input.
The HL9347 allows for the insertion of a DC bias current or voltage onto the RF circuit path with minimal perturbation of the impedance of a 50 ohm transmission line.
These devices can be used for biasing amplifiers, lasers, optical modulators, and other devices.
Applications include PAM4 communications systems, optical communication systems, highspeed data systems, level shifting, and cascading.
This part is available as matched pairs or individual units with a variety of connector configurations.
Key Specifications (typical)
| Bandwidth | 13 kHz to 67 GHz |
|---|---|
| Amplitude Match | ± 0.2 dB, f ≤ 67 GHz (opt. -M) |
| Phase Match | ± 4 degrees, f = 40 GHz (opt. -M) |
| Insertion Loss | < 1.5 dB, typical, f ≤ 67 GHz |
| Return Loss | > 15 dB, f ≤ 45 GHz > 10 dB, 45 GHz < f ≤ 67 GHz |
| Max Current | 175 mA |
| Connectors | 1.85 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
