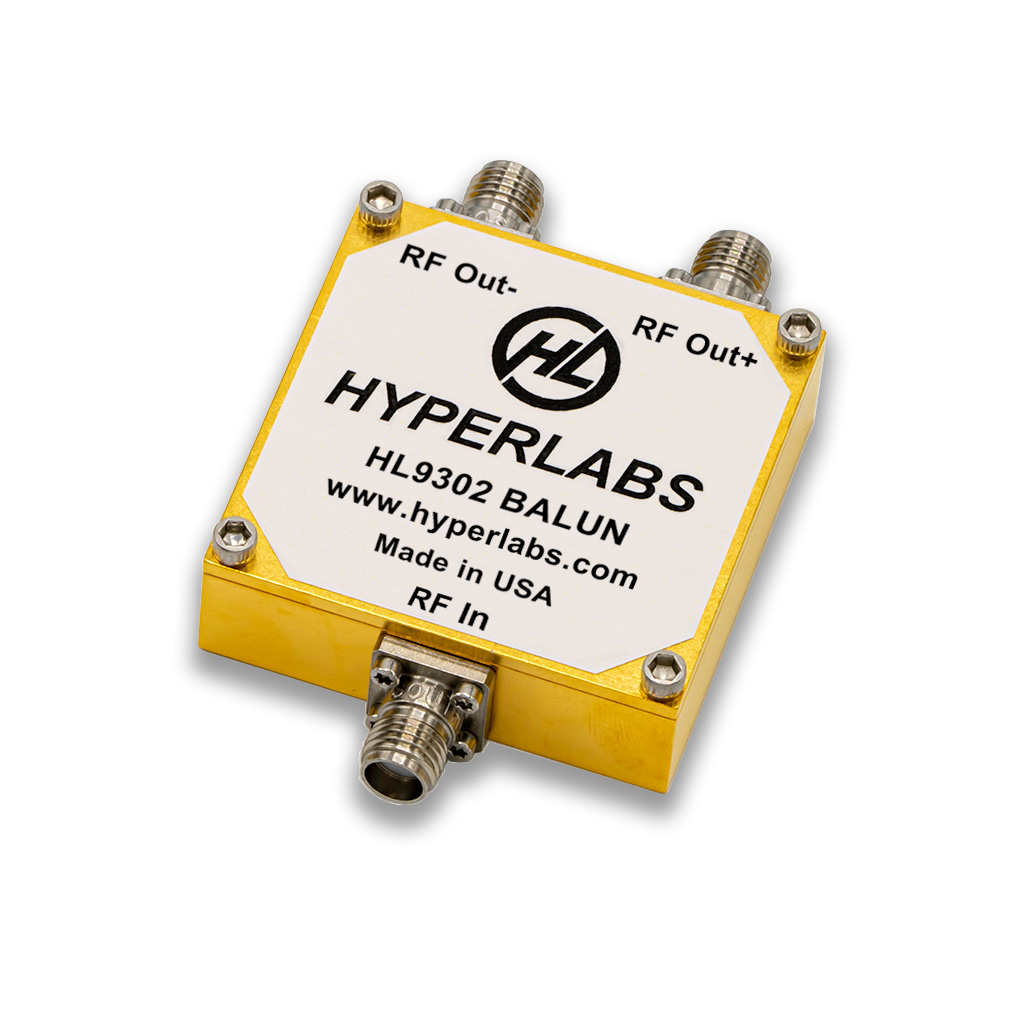

HL9302 Broadband Balun (8 MHz to 26.5 GHz)

$995.00

Datasheet  | S-parameters

The HL9302 is an ultra-broadband 180° signal splitter and combiner that offers excellent amplitude and phase match over a bandwidth of 8 MHz to 26.5 GHz.

This ROHS-compliant product is suitable for use in high-speed communications systems, high-speed analog-to-digital conversion, frequency response testing for differential devices, and many other applications.

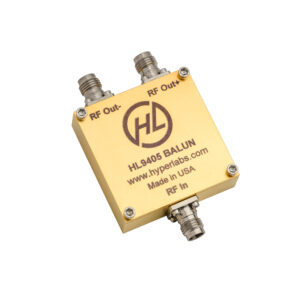

The HL930x series is a lower-cost alternative to the HL940x when a lower-frequency cutoff is not required.

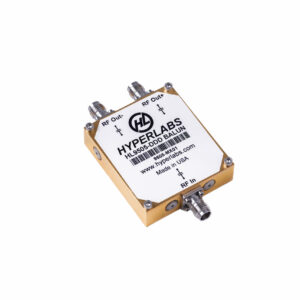

For other high-performance balun products, please see our complete line of ultra-broadband baluns.


Key Specifications (typical)
Bandwidth 8 MHz to 26.5 GHz
Amplitude Match ± 0.1 dB, typical
Phase Match ± 2 degrees, f = 10 GHz
± 4 degrees, f = 20 GHz
Insertion Loss 6 dB nominal
Connectors SMA; 1x jack input, 2x jack output
RoHS Compliant Yes
REACH Compliant Yes
Warranty 1 year, repair or replacement

NOTE #1: If the DC voltage of the balanced or unbalanced ports is non-zero, DC blocks are required. The balanced ports (2 and 3) are DC shorted.

NOTE #2: To achieve maximum amplitude match to the specified frequency, our baluns are designed to require highly-accurate (< 1%) 50 Ω terminations on the differential outputs.
