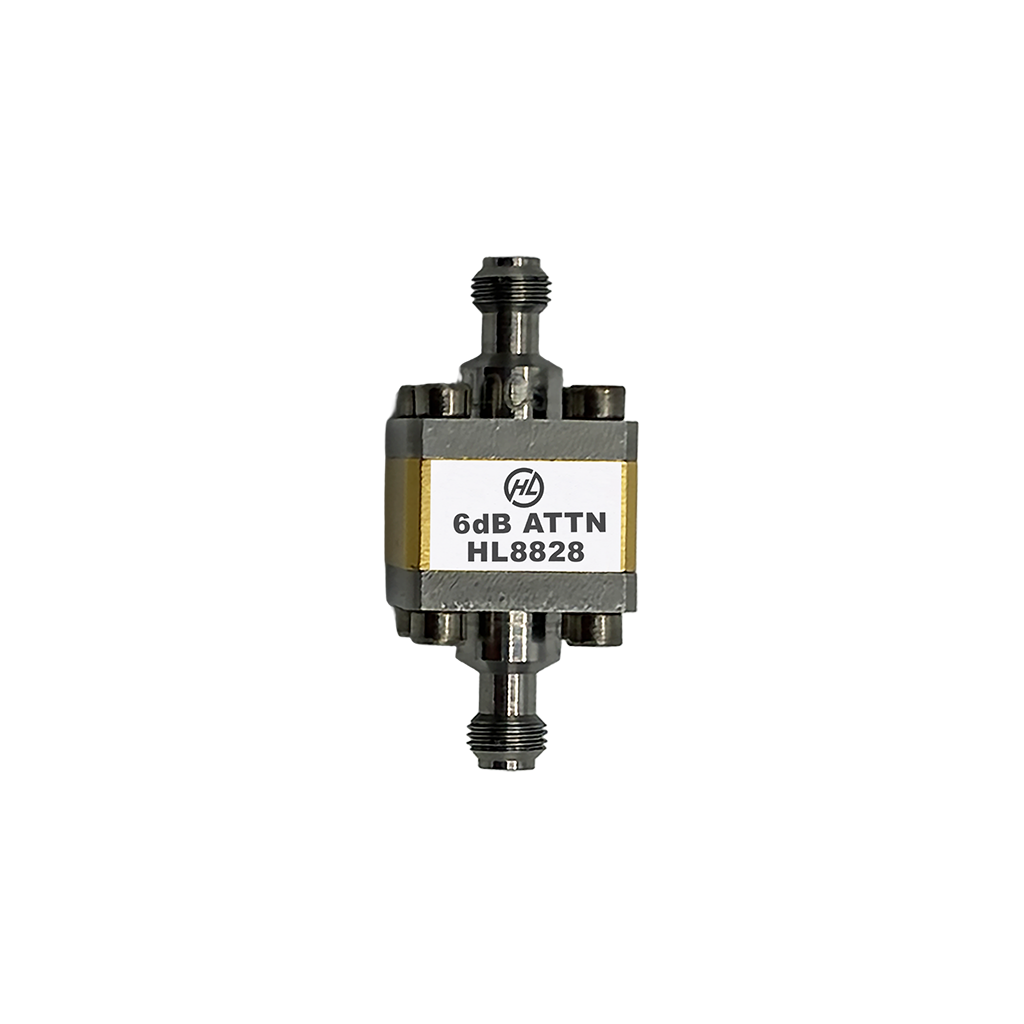

HL8828 Broadband Attenuator (DC to 145 GHz)
Datasheet (Preliminary)
The HL8828 is an ultra-broadband attenuator with a typical fixed insertion loss of 6 dB with a very flat frequency response from DC to 145 GHz.
These devices are typically used to reduce RF input power to protect sensitive front-end instrumentation or any other application that requires a signal reduction.
Typical Applications include optical communications, test & measurement, high-speed data systems, pulse experiments, and 224 Gbps PAM4 communications systems.
Key Specifications (typical)
| Bandwidth | DC to 145 GHz |
|---|---|
| Insertion Loss (AC) | 6 ± 1.5 dB, f ≤ 145 GHz |
| Connectors | 0.8 mm; 2x jack |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
