HL809x
HL809x Broadband Adapters
HL809x Broadband Adapters (110 GHz)
DISCONTINUED
As of January 2024, these adapters are no longer offered for sale. Please consider adapters from our recommended vendor, Southwest Microwave.
Datasheet PDF | S-parameters
The HL809x Series are inline coaxial adapters used for changing the gender of 1.0 mm (W) connectors used for cables and microwave components.

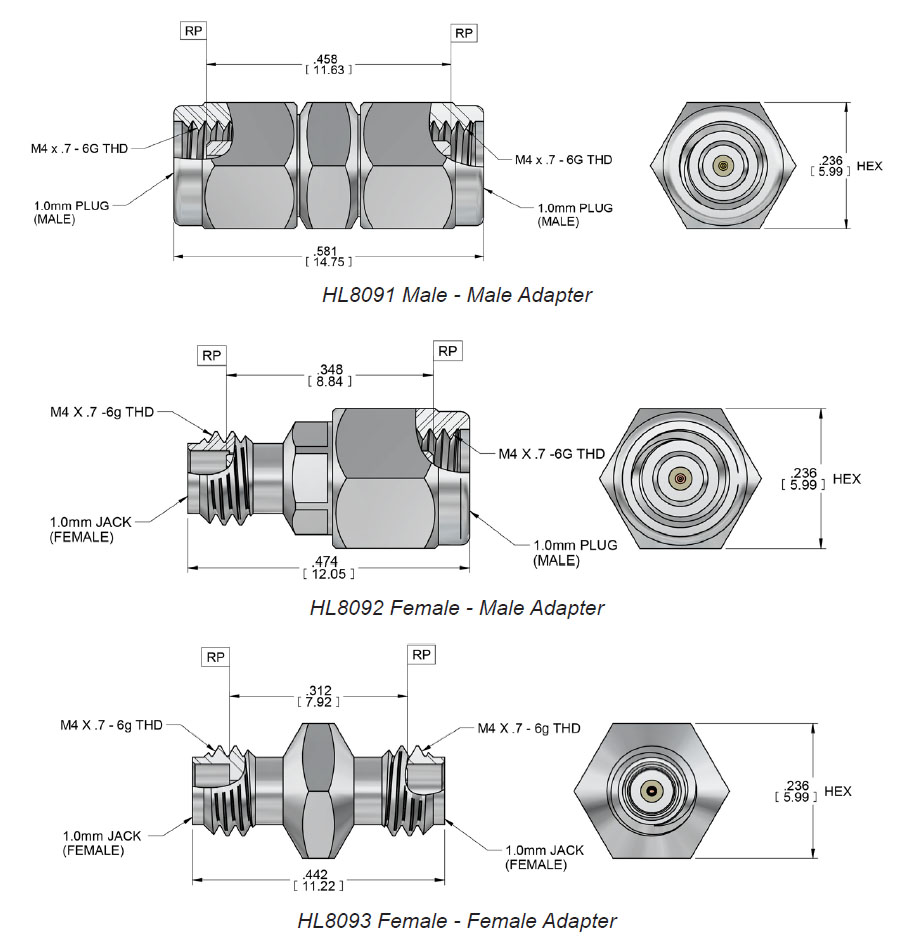

This part has very low insertion loss and is available as the HL8091 (male-male), HL8092 (male-female), or HL8093 (female-female).
Typical use is to adapt passive and active ultra-broadband components to meet particular cable requirements in a lab environment.
Key Specifications (typical)
| Bandwidth | DC to 110 GHz |
|---|---|
| Connector Gender Options | Plug-Plug (Male-Male) Plug-Jack (Male-Female) Jack-Jack (Female-Female) |
| Insertion Loss | < 0.4 dB (Plug-Plug) < 0.3 dB (Plug-Jack) < 0.2 dB (Jack-Jack) |
| Return Loss | > 18 dB |
| Connectors | 1.0 mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Warranty | 1 year, repair or replacement |
