HL5216 Ruggedized Signal Path Analyzer™


Datasheet PDF

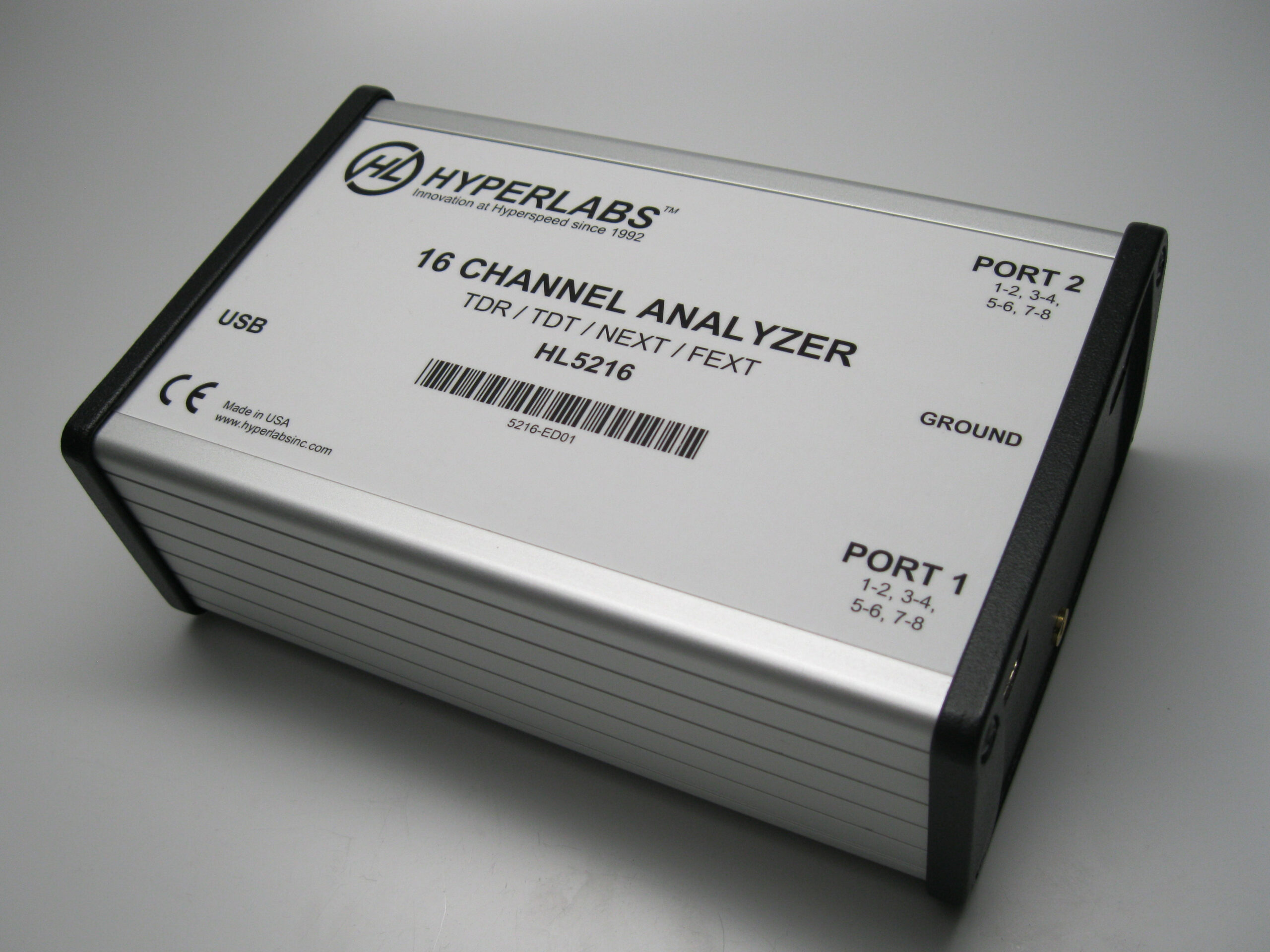

The HL5216 Signal Path Analyzer™ measures TDR, TDT, return loss, and insertion loss in high-speed interconnects, cables, and PCB traces.

With a fast 200 ps rise time, ESD robustness, and highly-customizable software controls, these instruments provide a cost-effective alternative to traditional benchtop and factory-floor test systems.

The included XTDR™ software for Windows displays full waveforms and numerical measurements in a highly-customizable user interface. The instrument is powered and controlled using a single USB cable.

SKU: HL5216 Category:

Technical Specifications

Datasheet PDF

# of Channels 8 differential pairs (HDMI interface)
Typical Rise Time 200 ps
ESD Sensitivity Complies with Class 2 of ESDS Component Sen-sitivity Classification (ESD STM5.1-1998)
Time Base 75 ns (15 m test range)
Return Loss and Insertion Loss to 1.8 GHz
Interface USB-powered and -controlled
Software XTDR (Windows only) with lifetime upgrades
Dimensions 6.73″ x 4.25″ x 2.43″
Weight 20.0 oz.
Warranty 1 year, repair or replacement

Product Applications

  • Printed circuit board (PCB) coupon testing
  • Interconnect characterization
  • Impedance measurement of cables up to 5 m

Software and Documentation

Ordering and Shipping

This product is built to order. Please contact us for lead time information.
