HL3204 Ruggedized Controlled Impedance Analyzer

$6,995.00

Datasheet PDF

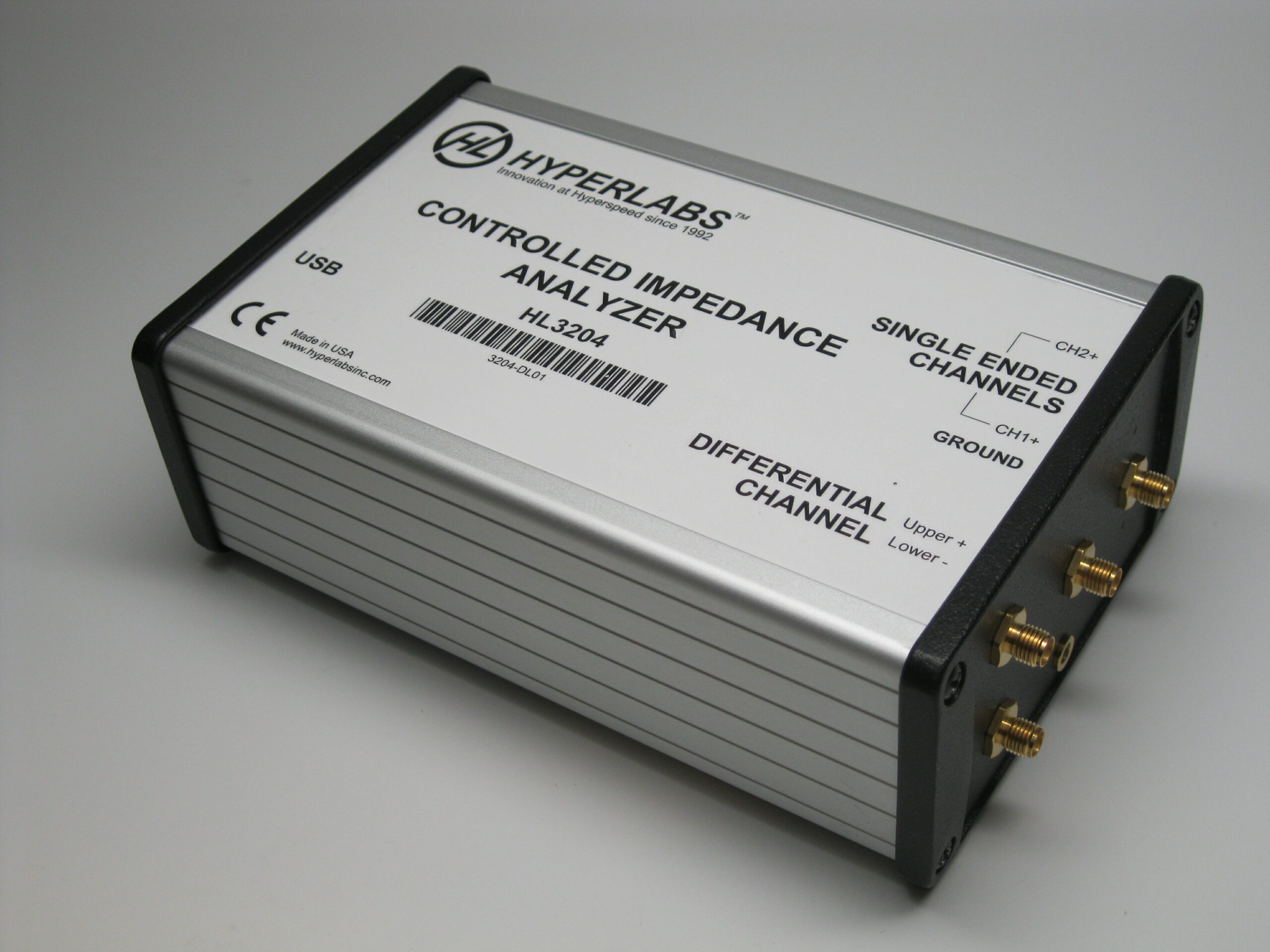

The HL3204 is an electrostatic-robust controlled impedance analyzer designed for easy, cost-effective PCB impedance characterization and verification. These instruments are designed to comply with IPC-2141A standards for PCB coupon testing.

This USB-controlled differential instrument includes a copy of our Zcoupon™ software for Windows with free lifetime upgrades.

The HL3204 can also be purchased as part of the HL300S Ruggedized Controlled Impedance Test System, which includes the analyzer, two probes, and a calibration standards substrate.

SKU: HL3204 Category:

Technical Specifications

Datasheet PDF

# of Channels 1 differential pair / 2 single-ended
Typical Rise Time 200 ps
Calibration Internally calibrated to within ± 1% of 50 Ω
Static Robustness ESDS Class 2
Interface USB-powered and -controlled
Software Zcoupon (Windows only) with lifetime upgrades
Dimensions 5.41″ x 2.44″ x 1.48″
Warranty 1 year, repair or replacement

Product Applications

  • Printed circuit board (PCB) impedance characterization
  • Coupon testing of printed circuit boards
  • Controlled impedance quality assurance

Software and Documentation

Related Products

Ordering and Shipping

This product is built to order. Please contact us for lead time information.
